CRL "SCDW" Series Service Windows incorporate the self-closing feature typically required by the fast food industry. These high quality windows are manufactured for interior or exterior, high or low usage applications. Self-Closing function is provided with high quality components designed for trouble-free operation.
Since each unit is custom built to your specifications, we will work with you to design a unit that best suits the requirements of the installation. Glazing and sill conditions will be discussed, and our Transaction Hardware professionals will help you select the options that will result in a window that meets your customer's needs and expectations.
For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf or Sill
Finishes: Satin Anodized, Bronze Anodized, Powder Painted or KYNAR Painted
Glazing Options: 1/4" to 1/2" (6 to 12 mm) Tempered, Laminated or Tinted Glass; 1/2" (12 mm) Insulating Glass Unit
Option: Fly Fan Switch
To Determine Rough Opening: Add 1/2" (12 mm) to width; 1/4" (6 mm) to height of frame, including the track, sill or shelf.
NOTE: 26" (660 mm) is the minimum frame width for SCDW Series Windows.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

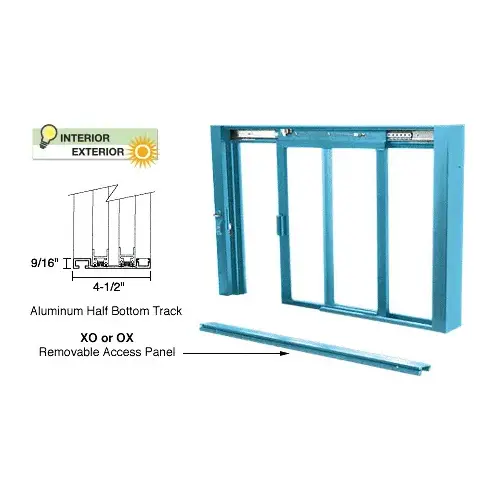

CRL SCDW1801P Custom Powder Painted Self-Closing Deluxe Sliding Service Windows with Aluminum Half Bottom Track
Item #: SCDW1801P by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Drawings and Specifications are Available
- Each Unit is Custom Fabricated to Fit Opening
- One Fixed and One Sliding Panel Configuration
- Removable Header Access Panel for Easy Servicing
- Self-Closing Mechanism and Self-Latching Handle Included
Sill Condition
Aluminum Half Bottom Track
Panels
O = Fixed, X = Sliding
Configuration
XO or OX
Finish
Powder Coated
Glazing Thickness
1/4 To 1/2
Screen
No
Options
Fly Fan Switch
Glazing Type
Specify
Finish/Color
Powder Coated
Configuration (From Clerk's Side)
XO,OX
Sill Height (Inches)
9/16
Panel Designation
O = Fixed, X = Sliding
Glazed
Yes
Material
Aluminum
Sill Height
9/16 in. (14.3 mm)
Product Overview
CRL "SCDW" Series Service Windows incorporate the self-closing feature typically required by the fast food industry. These high quality windows are manufactured for interior or exterior, high or low usage applications. Self-Closing function is provided with high quality components designed for trouble-free operation.
Since each unit is custom built to your specifications, we will work with you to design a unit that best suits the requirements of the installation. Glazing and sill conditions will be discussed, and our Transaction Hardware professionals will help you select the options that will result in a window that meets your customer's needs and expectations.
For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf or Sill
Finishes: Satin Anodized, Bronze Anodized, Powder Painted or KYNAR Painted
Glazing Options: 1/4" to 1/2" (6 to 12 mm) Tempered, Laminated or Tinted Glass; 1/2" (12 mm) Insulating Glass Unit
Option: Fly Fan Switch
To Determine Rough Opening: Add 1/2" (12 mm) to width; 1/4" (6 mm) to height of frame, including the track, sill or shelf.
NOTE: 26" (660 mm) is the minimum frame width for SCDW Series Windows.
