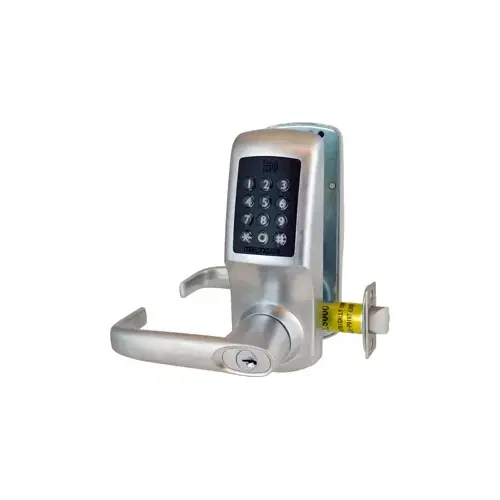

Codelock CL5510BS Brushed Steel Electronic Keypad Door Lever
Item #: CL5510BS by Codelock
UPC #: 817083020517
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Allow Clients access via a simple code, allocate and register a MIFARE compatible card or send an invitation to their phone
- Allow access at set times of day by setting the lock into Code Free mode
- Set codes for a specific start date and time and that automatically expire after a set duration
- Download and view the full lock audit trail data
- Can be managed with the K3 Connect App by any Bluetooth compatible smartphone
Finish
Brushed Steel
Series
Codelocks CL500 Series
Warranty
TWO Year Limited Warranty
Pack Size
1
Assembled Depth (in.)
3.125
Assembled Height (in.)
7.75
Assembled Width (in.)
2.75
Backset size (in.)
2-3/4
Certifications and Listings
No Certifications or Listings
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Electronic Keypad
Electronic Door Lock Type
Keypad Locks
General Material
Zinc
Hardware Finish Family
Steel
Maximum User Codes
350
Required Battery Type
AA
Security/ANSI Grade
N/A
UNSPSC
46171500
Grade
Grade 2
Power
4 AA Batteries
Handing
Non-Handed
Spindle
two part 5/16" spring loaded
Orientation
Vertical
Code Length
4 digits
Product Type
Smart Lock
Voltage
4 AA
Function
Keypad Lock
Access Type
Electronic
Alternate Part Number-1
156922
Lock Category
Tubular Lock
Knob/Lever Style
Lever
Keyway
Schlage C
Cylinder Type
Conventional
Finish Description
Satin Stainless Steel
Keyblank Grouping
SCHL-C-6-1
Sub-Series
EAC_Electronic_Cylindrical_Locks_codelocks_3
Manufacturer Parent
Codelocks
Features
Manage and Operate Locks Via Smartphone; Keyless Entry; 12 Button Back-Lit Keypad; Netcode® Generation Technology; Set Up to 10 Code Free Access Periods; Keypad Indicates Locked/Unlocked Status; Tamper Time Out and Low Battery Warning
Front Size
2-3/4" x 7-3/4"
Function Description
Front Plate Only. Install With New or Existing Panic Equipment. the Follower on the Panic Equipment Must Return to Square to Align With Follower on the Lock
Strike Size
2-1/4" x 1-3/16"
Finish Family
Stainless Steel
ADA Compliant
No
Rose Diameter
2-3/4 Inch
Door Thickness
1-3/8 to 2-3/8 Inch
Color Code
BS
Backset
2-3/4 Inch
Hand
Non-Handed
Application
Internal; External
Product Overview
The new SMART Lock, CL5510 ANSI Grade 2, makes access control easier, offering flexibility and convenience by providing a range of entry methods including the use of pushbutton code, smart card or smartphone, enabling users to choose the most suitable access method. It utilizes wireless technology to give building managers the ability to program locks via a smartphone, generate and send entry codes for easy access and issue smart cards for alternative entry. Operate and manage directly via the keypad or via a compatible smartphone by downloading the K3 Connect App. Program locks via your smartphone, generate and send codes for easy access, issue smart cards for alternative entry, track and control with audit trail.
- Up to 350 users
- 100 phone clients
- 100 client user codes
- 12 button back-lit keypad
- Keyless entry-no lost keys
- NetCode generation technology
- Set up to 10 code free access periods
- Suspend and restore any or all clients
- Keypad indicates locked/unlocked status
- Tamper time out and low battery warning
- Manage and operate locks via smartphone
- Personal wireless connectivity for management
- Tubular latch mortise lock and panic kit available
- Simple upgrade from CL5000 range using same fixings
- Auxiliary connections enabling 4 different modes of operation
