Our CRL Z-Series Round Type Radius Base Glass Clamps are designed to be used on glass thickness of 1/4" up to 1/2" (6 to 12 mm), and are available in either zinc or stainless steel. The clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.
NOTE: 1/2" (12 mm) notch is required if using the steel pin (included with the clamp) for additional glass support.
SPECIFICATIONS:
Glass Thicknesses: For 3/8" (10 mm).
Base Design: Radius
For Use With: 1-1/2" or 2" (38 or 50.8 mm) Diameter Round Tubing
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) notch is required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
Replacement Hardware: CRL P612 for Replacement Screws & Replacement gaskets are available by ordering CRL Cat. No. Z14RG.
Product Warning:
For interior CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

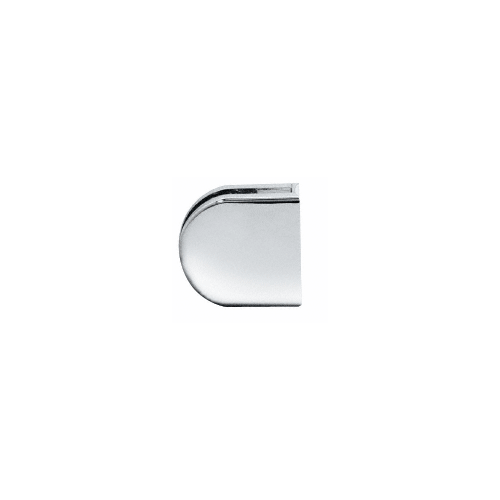

CRL Z210CH Chrome Z-Series Round Type 2" Radius Base Zinc Clamp for 3/8" Glass
Item #: Z210CH by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 3/8" (10 mm) Glass
- Zinc Casting
- For Use on Mezzanines, Partitions, Railings and Windbreaks
- Use Monolithic Tempered Glass
- Steel Pin Available for Additional Glass Support
- Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)
- Tested and Engineered to Meet and Exceed Code Standards
- Custom Painted Finishes Available Upon Request
Height
2-9/32
Tube Diameter
2" (51 mm)
Width
2-1/8
Finish
Chrome
Type
Zinc W/Radius Base & Fits 3/8" Glass
Material
Zinc
Depth
1-3/32
Glazing Thickness
3/8
Profile
Round
Finish/Color
Chrome
Product Overview
Our CRL Z-Series Round Type Radius Base Glass Clamps are designed to be used on glass thickness of 1/4" up to 1/2" (6 to 12 mm), and are available in either zinc or stainless steel. The clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.
NOTE: 1/2" (12 mm) notch is required if using the steel pin (included with the clamp) for additional glass support.
SPECIFICATIONS:
Glass Thicknesses: For 3/8" (10 mm).
Base Design: Radius
For Use With: 1-1/2" or 2" (38 or 50.8 mm) Diameter Round Tubing
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
Replacement Hardware: CRL P612 for Replacement Screws & Replacement gaskets are available by ordering CRL Cat. No. Z14RG.
Product Warning:
For interior CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
