Chrome Frameless Triple Mirror Hinge - pack of 4

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

CRL EH66Click To Copy Chrome Frameless Triple Mirror Hinge - pack of 4

Item #: EH66 by CR Laurence

11 reviews
See reviews summary
In Stock

$152.31

/package
SAVE UP TO 15.23

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 28 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

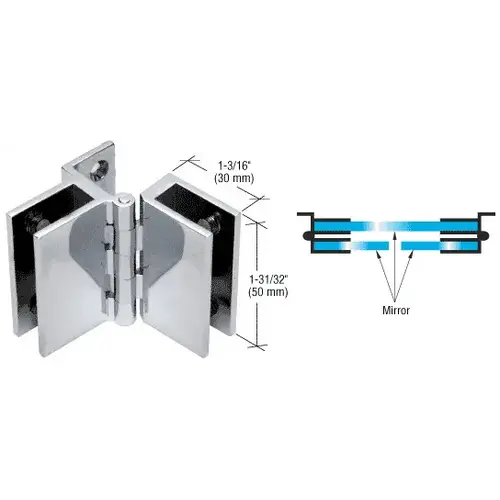

Features
  • For 1/4" to 5/16" (6 to 8 mm) Glass
  • Secures Mirror with Plastic Tipped Set Screws
  • Package Contains Four Hinges – Enough for One Complete Triple Frame

Hinge Height

1-31/32" (50 mm)

Hinge Width

1-3/16" (30 mm)

Finish

Polished Chrome

Material

Brass

Width

1-3/16

Glazing Thickness

1/4 To 5/16

Finish/Color

Polished Chrome

Height

1-31/32

Product Overview
CRL Chrome Frameless Triple Mirror Hinge is designed to make frameless triple mirrors that are mounted to the wall. It is a compact general purpose glass to glass hinge with the set screws at the back. The plastic tipped set screws secure the glass. Each package contains four hinges that are enough to complete one triple finish. Minimum order is one package. NOTE: CRL strongly recommends using Cat. No. 2MT Safety Backing Tape over the entire rear surface of all mirror installed into these Hinges. Maximum Panel Size to Be Used with This Hinge: 5/16" (8 mm) Glass: Wings: 51-3/16" (1300 mm) H x 17-3/4" (451 mm) W Center: 51-3/16" (1300 mm) H x 31-1/2" (800 mm) W 1/4" (6 mm) Glass: Wings: 59-1/16" (1500 mm) H x 19-1/16" (484 mm) W Center: 59-1/16" (1500 mm) H x 35-7/16" (900 mm) W DS 07/11/2016

From Manufacturer

CRL's Frameless Triple Mirror Hinge is a compact general purpose glass-to-glass hinge with the set screws on the back. This Hinge was designed to make frameless triple mirrors that are mounted to the wall. Plastic tipped set screws secure the glass. Minimum order is one package of four Hinges.
NOTE: CRL strongly recommends using Cat. No. 2MT Safety Backing Tape over the entire rear surface of all mirror installed into these Hinges.
Maximum Panel Size to Be Used with This Hinge:
5/16" (8 mm) Glass:Wings: 51-3/16" (1300 mm) H x 17-3/4" (451 mm) W Center: 51-3/16" (1300 mm) H x 31-1/2" (800 mm) W
1/4" (6 mm) Glass:Wings: 59-1/16" (1500 mm) H x 19-1/16" (484 mm) W Center: 59-1/16" (1500 mm) H x 35-7/16" (900 mm) W
