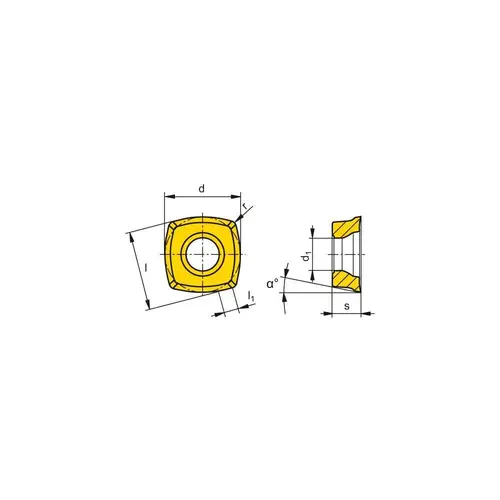

Milling Insert: XDLX 09T308ER-F40 CTC5240, CTC5240, Solid Carbide TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Ceratizit 50503558Click To Copy Milling Insert: XDLX 09T308ER-F40 CTC5240, CTC5240, Solid Carbide TiN

Item #: 50503558 by Ceratizit

See reviewsSee reviews
See reviews summary

$24.50

/each
SAVE UP TO 2.45

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Material Application

Superalloys & Titanium

ANSI Code

XDLX 09T308ER-F40 CTC5240

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

XDLX

Coating Process

CVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0315

Length (Decimal Inch - 4 Decimals)

0.3543

Manufacturers Catalog Number

XDLX 09T308ER-F40 CTC5240

Material Grade

S40

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

Thickness (Decimal Inch - 4 Decimals)

0.1563

Thickness (Inch)

5/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3748

Width (Inch)

3/8

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.1669

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3748

Corner Radius (Inch)

1/32

Insert Shape

Square

Chip Breaker

F40

Secondary Workpiece Material Code

M

Insert Style

XDLX

Insert Size Code

09T308

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

15.00

Included Angle Degree

90

Inscribed Circle (Inch)

3/8

Cutting Edge Effective Length (Decimal Inch)

0.3543

Manufacturer Grade

CTC5240

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

HFC

Length Range (Decimal Inch)

0.3200 to 0.4000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Iso Code

XDLX 09T308ER-F40 CTC5240

Product Overview
Milling Insert: XDLX 09T308ER-F40 CTC5240, CTC5240, Solid Carbide Coated, 0.1563" Thick
