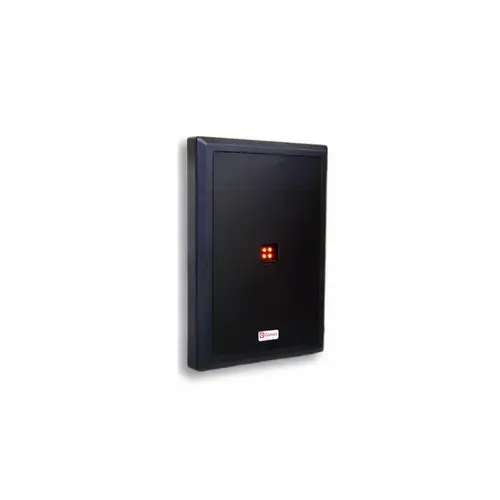

Cansec Systems Ltd P-710-HA CanProx Readers - Select HID and AWID 125 kHz
Item #: P-710-HA by Cansec Systems Ltd
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Product Depth
1 Inch
IP Rating
IP67
Manufacturer Parent
Cansec Systems Ltd
Color
Black
Product Width
6 Inch
Peak Current
350 mA peak at 12 VDC
Read Range
Up to 15"
Function
Reader
Sub-Series
P-710-HA
Average Current
215 mA
ADA Compliant
No
Mounting Type
Single Gang
Operating Temperature
-40° to 149°F
System Interfaces
Wiegand ABA Track II
Product Height
8-1/2 Inch
Application
Convenience to a Wide Range of Access; Turnstiles and Parking Control
Style
Proximity
Standards
FCC; ICC
Voltage
5 to 16 VDC
Cable Gauge
24 AWG
Product Type
Access Control
Features
Quick Installation; Certain HID® and AWID® 125 Khz Proximity Protocols Supported; Oversized LED Array, Ideal for Increased Visibility in Outdoor Installations
Product Material
Metal/Plastic
Indoor or Outdoor Use
Indoor/Outdoor
Technologies Supported
CanProx Proximity Cards and Tags; CanProx + HID® 125-kHz Proximity Credentials + AWID® 125-kHz Proximity Credential
Resistant Properties
Tamper and Weather Resistant
Warranty
Limited Lifetime Warranty
Series
HID and AWID
Product Overview
P-710CanProx Long Range Reader
CanProx Long Range Readers (P-710) and (P-900) are high performance design readers. The P-710 is classified as a medium range reader, and is capable of delivering read ranges of up to 15 inches (381mm). The longer read range of these readers adds convenience to a wide range of access applications, including turnstiles and parking control.
Application
High performance design makes it ideal for longer range applications such as door access (metal or plastic wall-box mount), gate entry and parking barriers.
Compatible
Wiegand and magnetic stripe protocols for easy integration with standard access systems.
Versatile
Supports leading proximity card and tag technologies.
Performance
The P-710 delivers non-contact read ranges up to 15 inches (381 mm).
Durable
Secured with tamper- and weather-resistant epoxy potting, and backed by a lifetime warranty.
- Proximity
- 125 kHz
- Metal or plastic US single-gang wall box, as well as non-metalic flat surfaces
- 8.5 x 6 x 1 inches
- (216 x 152 x 25.4 mm)
- N/A
- 20 oz. (567g)
- FCC
- ICC
- IP671 Power
- +5 - 16 VDC
- 215 mA typical, 350 mA peak @ 12VDC
- Up to 15 inches (381 mm)
- 24 AWG minimum, multi-conductor stranded with an overall foil shield
- Wiegand ABA Track II
- -40° F to 149° F
- (-40° C to +65° C)
- Black with a black polyester face label
- Beeper included standard
- Electronics sealed in weather- and tamper-resistant epoxy potting
- Limited lifetime warranty
- Four-state standard (red, green, amber & off)
- N/A
- CanProx Proximity Cards and Tags
- CanProx + HID® 125-kHz proximity credentials + AWID® 125-kHz proximity credentials
- 1 Self certified
- 2 Linear power supplies are recommended for best operation; recommended models - Altronix LPS3C12X, Electronic Security Devices LP1EST12, Highpower Security Products Lightning 505.
- 3 Using Standard Clamshell Proximity Card with 12VDC at the reader.
- 4 For example Belden 9535 or similar.
- 5 Available only on P-640 models.
- P-710-HA (Read range up to 15 inches)
