Cansec Systems Ltd P-620-HA37 P-620-HA CanProx Readers - Select HID and AWID 125 kHz

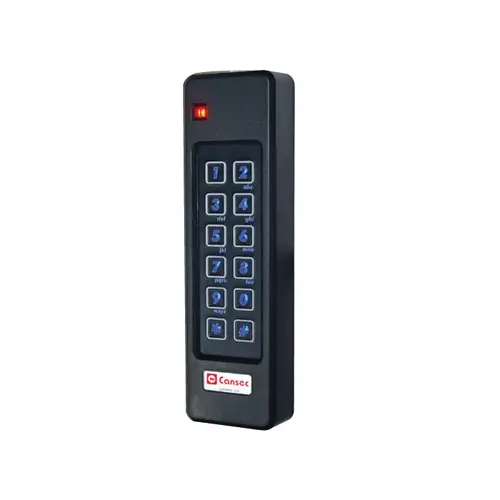

P-620CanProx Proximity/Keypad Reader

The P-620 integrates both a proximity reader and keypad into a single unit making it ideal for applications requiring an access credential and/or personal identification number (PIN). It can also be used as a keypad only. Keypad data is transmitted in either 37-Bit or 26-Bit Wiegand data format.

Application:

• Compact design makes it ideal for applications requiring both a card reader and a keypad, such as metal doors, window frames & flat surfaces, gate entry and parking barriers.

Compatible:

• Wiegand protocol for easy integration with standard access systems.

Versatile:

• Supports leading proximity card and tag technologies.

Performance:

• Delivers non-contact read ranges up to 5 inches (126 mm).

Durable:

• Secured with tamper- and weather-resistant epoxy potting, and backed by a lifetime warranty.

Features & Benefits: Technology:

• Proximity

Operating Frequency:

• 125 kHz

Mounting:

• Mullions, including metal door and window frames, as well as flat surfaces

Dimensions:

• 1.78" W × 6.1" H × 0.91" D
• (45mm × 155mm × 23mm)

OEM Label Area Dimensions:

• 0.9" W × 0.35" H (22.86 mm × 8.89 mm), with corner
  radius of 0.063" (1.6 mm)

Weight:

• 4 oz. (113g)

Certification1:

• FCC, ICC, CE, C-Tick, UL Standard 294

IP Code2:

• IP67

Voltage3:

• +5 – 16 VDC

Current Draw:

• 70 mA typical, 110 mA peak @ 12 VDC

Read Range4:

• Up to 5 inches (126 mm)

Cabling5:

• 24 AWG minimum, multiconductor stranded with an overall foil shield

Interface:

• Wiegand

Operating Temperature:

• -40° F to 149° F (-40° C to +65° C)

Color Options:

• A black and a white snap-on cover included standard

Audio Tone:

• Beeper included standard

Indoor & Outdoor Installation:

• Electronics sealed in weather- and tamper-resistant epoxy potting

Warranty:

• Limited lifetime warranty

LED:

• Four-state standard (red, green, amber & off)

Keypad Output6:

• 26-Bit Wiegand (P-620-HA) or 37-Bit Wiegand (P-620-HA37)

Technologies Supported:

• CanProx Proximity Cards and Tags
• CanProx + HID® 125-kHz proximity credentials + AWID® 125-kHz proximity credentials

• 1 Certifications are pending.
• 2 Self evaluated.
• 3 Linear power supplies are recommended for best operation.
• 4 Using Standard Light Proximity Card with 12VDC at the reader.
• 5 For example Belden 9535 or similar.
• 6 Available only on P-620 models; 37-Bit or 26-Bit Wiegand standard.

Part Numbers:

• P-620-HA (26-Bit Wiegand Output)
• P-620-HA37 (37-Bit Wiegand Output)
