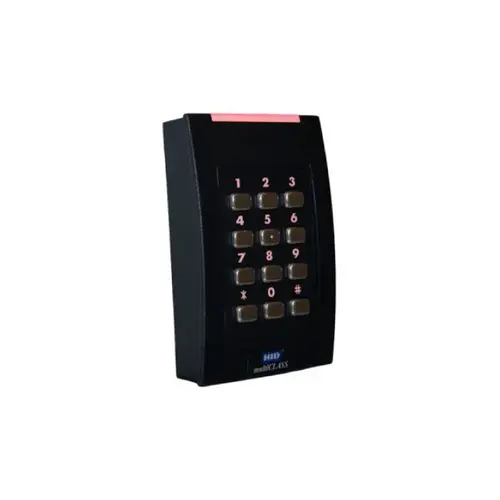

Cansec Systems Ltd HU-921PTNNEK HID RPK40 multiCLASS SE Reader with Keypad

HID® multiCLASS SE® RPK40Contactless smart card reader - wall switch keypad

The multiCLASS SE® RPK40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for multi-factor authentication door applications requiring standard wall switch mounting, multiCLASS SE® RPK40 supports a broad array of 13.56 MHz high frequency and 125 kHz low frequency credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.

With a focus on sustainability, iCLASS SE platform readers include intelligent power management that reduces power consumption by as much as 59%. Selected models also have Environmental Product Declaration certification and Green Circle certification, which contributes toward LEED building credits.

Key Features: Adaptable:

• Interoperable with a growing range of technologies (iCLASS Seos®, iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.

Powerfully Secure:

• The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data

Standardized Communications (OSDP):

• Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.

Typical Read Range1: 13.56 MHz Single Technology ID-1 Cards – SIO Model Data:

• iCLASS Seos: 0.8" (2 cm)
• iCLASS: 4.7" (12 cm)
• MIFARE Classic: 4.3" (11 cm)
• MIFARE DESFire EV1/EV2 1.6" (4 cm)

13.56 MHz Single Technology Tags/Fobs5 – SIO Data Model:

• iCLASS: 2.8" (7 cm)
• MIFARE Classic: 1.6" (4 cm)

125 kHz Single Technology ID-1 Cards:

• HID Prox: 2.8" (7 cm)
• Indala Prox: 2.0" (5 cm)
• EM4102 Prox: 3.1" (8 cm)

125 KHz Single Technology Tags/Fobs:

• HID Prox: 1.6" (4 cm)
• Indala Prox: 1.2" (3 cm)
• EM4102 Prox: 2.4" (6 cm)

Specifications: Base Part Number:

• 921P
• 921L

Mounting:

• Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing

Mounting Spacer:

• To be used when mounting on metallic surfaces, refer to How To Order Guide for part numbers

Color:

• Black

Keypad:

• Yes (4x3)

Dimensions:

• 3.3" x 4.8" x 1.1"
• (8.5 cm x 12.2 cm x 2.8 cm)

Product Weight (Pigtail):

• 9.1oz (258g)

Product Weight (Terminal Strip):

• 8.0oz (228g)

Operating Voltage Range:

• 5-16 VDC, Linear supply recommended

Current Draw:
Standard Power Mode2

• 95

Current Draw:
Intelligent Power Management (IPM) Mode2 (mA)

• 70

Peak Current Draw:
Standard Power or IPM Mode2 (mA)

• 200

NSC3 Power Consumption:
Standard Power Mode (W @ 16VDC)

• 1.5

NSC3 Power Consumption:
w/ IPM (W @ 16VDC)

• 1.1

Operating Temperature:

• -31° to 150° F
• (-35º to 65º C)

Storage Temperature:

• -67° to 185° F
• (-55° to 85° C)

Environmental Rating:

• Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT)

Transmit Frequency:

• 13.56 MHz & 125 kHz

Communications:

• Optional OSDP with SCP over RS4854
• Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG)
  - Use Shielded cable for best results

Panel Connection:

• Pigtail or Terminal Strip

Cryto Processor Hardware Common Criteria Rating:

• EAL5+

Patents:

• US7180403
• US7439862
• US7124943
• US5952935
• US6058481
• US6337619

Housing Material:

• UL94 Polycarbonate

Manufactured with % of recycled content (Pigtail):

• 10.9%

Manufactured with % of recycled content (Terminal Strip):

• 12.3%

UL Ref Number:

• RPK40E

Warranty:

• Limited Lifetime

125 kHz Card Compatibility:

• HID Prox4
• AWID4
• Indala
• EM41024

13.56 MHz Card Compatibility:

• Secure Identity Object™ (SIO®) on iCLASS Seos

• iCLASS SE/SR

• MIFARE DESFire EV1 and MIFARE Classic (On by Default)

• Standard iCLASS Access Control Application
• (order with Standard interpreter)

• ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN

• MIFARE Classic and MIFARE DESFire EV1 custom data models

• FeliCa™4 CSN, CEPAS4 CSN or CAN

• MIFARE DESFire EV2 via EV1 backward compatibility

Certifications:

• UL294/cUL (US)

• FCC Certification (US)

• IC (Canada)

• CE (EU)

• C-tick (Australia, New Zealand)

• SRRC (China)

• MIC (Korea)4

• NCC (Taiwan)4

• iDA (Singapore)4

• RoHS

Certifications:

• 1 Read range listed is statistical mean rounded to nearest whole centimeter. HID Global testing occurs in open air. Some environmental conditions, including metallic mounting surface, can significantly degrade read range and performance; plastic or ferrite spacers are recommended to improve performance on metallic mounting surfaces.

• 2 Measured in accordance with UL294 standards; See Installation Guide for Details.

• 3 NSC = Normal Standby Current; See Installation Guide for Details.

• 4 Not available on 9xxL part numbers.

• 5 Supported Tags/Fobs - iCLASS, and MIFARE Classic
