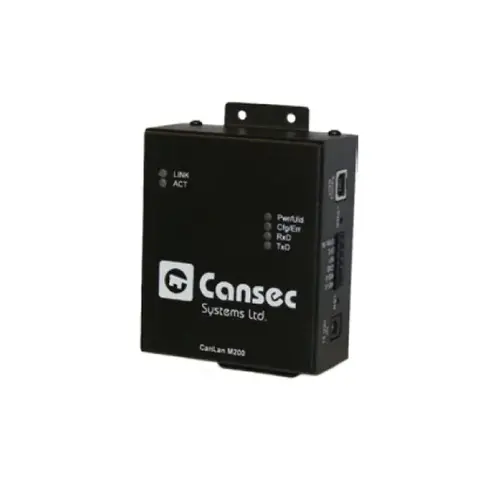

Cansec Systems Ltd CA-CANLAN2 Network Communications Device

Item #: CA-CANLAN2 by Cansec Systems Ltd

See reviewsSee reviews

$460.28

/each
SAVE UP TO 46.03

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Function

Access Control Accessory

ADA Approved

False

Product Type

Access Control

Series

Access Control Peripheral

Product Depth

4-1/2 Inch

Power Source

12VDC at 210mA

Manufacturer Parent

Cansec Systems Ltd

Product Width

3-1/16 Inch

Sub-Series

CA-CANLAN2

ADA Compliant

No

Operating Temperature

-40° to 158°F

Product Height

1-3/8 Inch

Standards

FCC Class A; CE; ICES-003

Features

Cost Effective Solution; Each Unit Comes With Easy-To-Use Software That Allows the Installer to Configure the Canlan II Controller With an IP Address; Configured Through USB or Network Interface; Login Password Protection

Warranty

5 Year

Included Components

UTP Jack; USB Jack; RS-485 Output; IP Reset Button; Unit Identifier LED; Separate LEDs for Network Link and Activity as well as RS-485 Transmission and Reception; Configuration and Diagnostic Tools

Product Overview
CanLan IIIP Communication Device

Cansec’s CanLan II TCP/IP Controller is a cost-effective solution that makes it easy to network-enable Cansec’s CP40, H1000, SmartLock door controllers and Zodiac Max reader over an existing Ethernet network.The CanLan II solution allows the existing network cable structure to be utilized in lieu of installing new and expensive communication cable. The CanLan II controller is equipped with RS-485 connectors as well as an RJ45 network interface for a connection to a computer network. Each unit comes with easy-to-use software that allows the installer to configure the CanLan II controller with an IP address, subnet mask, and gateway. The configurations may be saved to a binary file and restored at any time. Once configured, the unit can be installed on the Ethernet network and connected to Cansec controllers via the RS-485 connector.

The significant cost savings and value added features make CanLan II the ultimate solution for adding Cansec controllers to existing local or wide area networks.

Features & Benefits:
  • Connects Cansec SmartLock, CP40, H1000 Controllers or Zodiac Max readers to a LAN or to a WAN
  • Includes UTP jack, USB jack and RS-485 output
  • Includes default IP reset button
  • Includes unit identifier LED
  • Includes separate LEDs for network link and activity as well as RS-485 transmission and reception
  • Configured through USB or network interface
  • Configurations can be saved to a binary file and restored
  • Login password protection
  • Supports remote reboot for configuration changes
  • Includes configuration and diagnostic tools
Specifications: Size (L x W x H):
  • 4 1/2" x 3 1/16" x 1 3/8" (114 mm x 78 mm x 36 mm)
Weight:
  • 4 oz (113 g)
Operating Temperature:
  • -40° F to +158° F (-40° C to +70° C)
Environment:
  • 5% to 95% non condensing
Ethernet Port:
  • 10Base T interface, RJ45 jack
Baud Rate:
  • Programmable
Device Port:
  • RS485 (9.6k / 38.4k Baud rate)
Configuration port:
  • USB Type B. (9600 baud)
Power:
  • 12Volts DC at 210 mA
Warranty:
  • 5 years
Certifications:
  • FCC Class A
  • CE
  • ICES-003
Part Number:
  • CA-CANLAN2
