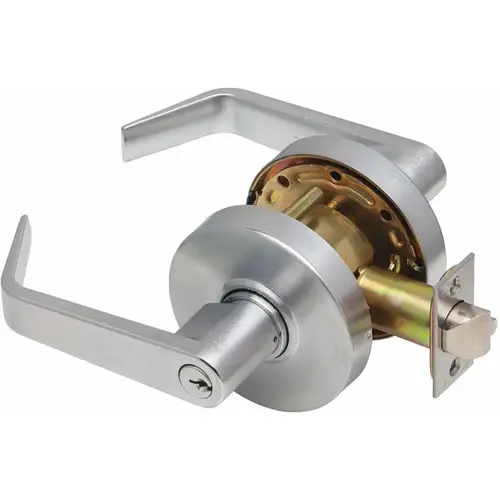

Dexter C2000-ENTR-R-626-KDC C2000-ENTR-R-626-KDC Regular Entry Non-Clutching - Satin Chrome
Item #: C2000-ENTR-R-626-KDC by Dexter by Schlage
UPC #: 043156535293
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1 3⁄8" to 1 3⁄4" door range standard
- Brass (605) ball knobs come packaged with square-corner beveled latch with 2 3⁄8" backset and ANSI 1 1 ⁄4" x 2 1 ⁄4" T-Strike standard.
- All other functions (except dummy) include 1 1 ⁄8" x 2 1 ⁄4" square-corner beveled latch with 2 3⁄4" backset and ANSI 1 1 ⁄4" x 4 7 ⁄8" curved lip strike (30-148)
- Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
- Accommodate SFIC to accept 6-pin/7-pin
Thickness
1-3/8 In. - 1-3/4 In.
Color
Satin Chrome
Function
Keyed Entry
Latch Type
Dead Latch (Guarded)
ANSI Function
F109 - Entry/Office
Hand
Not Handed
Grade
Grade 2
Special Marks
Conventional cylinder, Complies with ADA accessibility guidelines
Strike Width
1-1/4 In.
ADA Compliance
Yes
Latch Backset Dim
2-3/4 In.
Cylinder Type
Conventional Cylinder
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Keying
Keyed Different
Bolt Protection
1/2 In.
Color Code
626/US26D
Strike Type
ASA
Keyway
SC4 6-Pin Pin & Tumbler
Strike Height
4-7/8 In.
Lever/Knob Design
R - Regular
Finish
Satin Chrome
Backset
2-3/4", 1-1/8" x 2-1/4", Square Corner
Strike
ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
Design
Regular Lever
Series
C2000 Series
Finish Description
Satin Chrome
Lever Style
R-Regular
Keyblank Grouping
DEXT-SCHL-C-6-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.5000
Door Thickness
1 3/8" - 1 3/4"
Bore Size
2.1250
Strike Number
ACLS
ADA Approved
False
Keying Charges
CCAM
Strike Description
1-1/4" X 4-7/8" CURVED LIP
Box Length
7.2000
Box Width
6.7000
Box Height
3.6000
Handing
Non-Handed
Cylinder Included
Yes
Strike Size
4-7/8" x 1-1/4"
Alternate Part Number-1
156272
Finish code
626
Latch Bolt Type
Deadlatch
Knob/Lever Design
Regular
Latch Bolt Faceplate Size
2-1/4" x 1-1/4"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Square Corner
Latch Bolt Throw
1/2"
Door Thickness Max
1-3/4"
Knob/Lever Style
Lever
Manufacturer Parent
Allegion
Function Description
Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Sub-Series
CL_Cylindrical_Locks_dexter_commercial_19
Lever Style Family
Straight Return Lever
ADA Compliant
YES
Front Size
1-1/8" x 2-1/4"
Handle Type
Lever
Door Cross Bore
2.125 Inch
Box Dimensions (L x W x H)
7.2 x 6.7 x 3.6
Function Family
Entry/Entrance/Office
Standards
UL Listed 3-Hour
Product Projection
2-1/2 Inch
Latch Corner
Square
Cylinder Type Used
Conventional
Strike Lip
1-1/4 Inch
Finish Family
Satin Chrome
Collection
Regular
Package Height
3.6"
Package Length
7.2"
Package Width
6.7"
Item Weight
3.53 lbs
