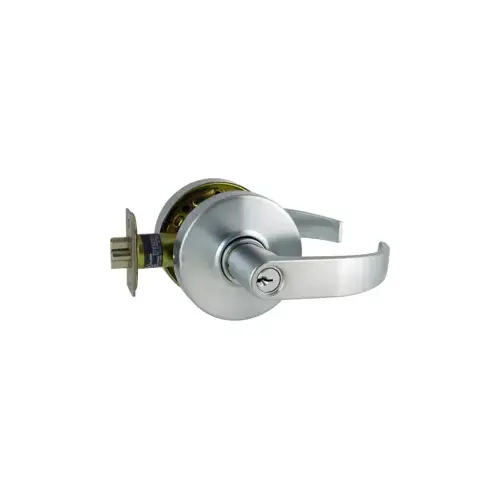

Dexter Commercial C1000-ASYL-C-626-KDC Cylindrical Lock Satin Chrome
Item #: C1000-ASYL-C-626-KDC by Dexter by Schlage
UPC #: 043156534784
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1 3⁄8" to 2" door range standard
- All functions include 1 1 ⁄8" x 2 1 ⁄4" square-corner beveled latch with 2 3⁄4" backset and ANSI 1 1 ⁄4" x 4 7 ⁄8" curved lip strike
- Accommodate Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
Grade
ANSI/BHMA Grade 1
Thickness
1-3/8 In. - 2 In.
Hand
Not Handed
Color
Satin Chrome
Color Code
626/US26D
Keyway
Schlage C
Function
ASYL-Asylum
Keying
Keyed Different
Cylinder Type
Conventional Cylinder
ADA Compliance
Yes
ANSI Function
F87 - Asylum
Bolt Protection
1/2 In.
Latch Backset Dim
2-3/4 In.
Latch Type
Deadlatch
Lever/Knob Design
C - Curved
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Special Marks
Conventional cylinder, Complies with ADA accessibility guidelines
Strike Height
4-7/8 In.
Strike Type
ANSI Curved Lip
Strike Width
1-1/4 In.
Series
C1000 Series
Design
Curved Lever
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Backset
2-3/4 Inch
Finish
Satin Chrome
Finish Description
Satin Chrome
Lever Style
C-Curved
Keyblank Grouping
DEXT-SCHL-C-6-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Door Thickness
1 3/8" - 2"
Bore Size
2.1250
Strike Number
RCFLS
ADA Approved
False
Keying Charges
CCAM
Strike Description
1-1/4" X 4-7/8" CURVED LIP
Box Length
8.2000
Box Width
7.0000
Box Height
3.9000
Alternate Part Number-1
156203
Strike Size
1-1/4" x 4-7/8"
Manufacturer Parent
Allegion
Sub-Series
C1000-ASYL-C-626-KDC
Lever Style Family
Curved Return Lever
ADA Compliant
YES
Front Size
1-1/8" x 2-1/4"
Handle Type
Lever
Door Cross Bore
2.125 Inch
Box Dimensions (L x W x H)
8.2 x 7 x 3.9
Function Family
Asylum/Institution/Utility
Standards
UL Listed 3-Hour
Latch Corner
Square
Cylinder Type Used
Conventional
Strike Lip
1-1/4 Inch
Finish Family
Satin Chrome
Handing
Field Reversible
Cylinder Included
Yes
Finish code
626
Latch Bolt Type
Deadlatch
Knob/Lever Design
Curved
Latch Bolt Faceplate Size
2-1/4" x 1-1/8"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Square Corner
Rose/Escutcheon Style
Rose
Door Thickness Max
2"
Knob/Lever Style
Lever
