CRL Regular U-Channel with Top Load Roll-In Glazing Gasket was designed to be used with our Patch Hardware, or our Header for Overhead Door Closers with Fixed Sidelites and Door Rail System. The design allows it to be surface or recessed mounted, with the Top Load Roll-In Glazing Gasket securing the glass.
NOTE: For installations using 1/2" (12 mm) glass, the Roll-In Glazing Gasket is included in the package. If using 3/8" (10 mm) glass the Roll-In Glazing Gasket must be ordered separately.
Product Warning:
CRL Does Not Recommend Cutting This Item Due to Gauge of Metal. If a cut is needed, additional cutting charges may apply.
This material is Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

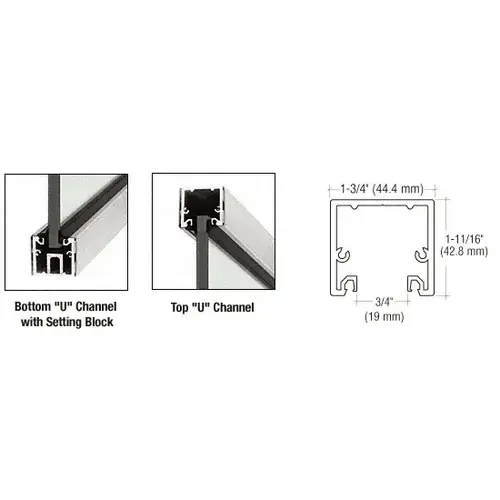

CRL UCBS3812SL Brushed Stainless Steel 120" U-Channel with Roll-In Top Load Gasket
Item #: UCBS3812SL by CR Laurence
See reviews See
reviews
In Stock
$314.46
/stock lengthSAVE UP TO 31.45
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Custom Finishes and Powder Painting Available
- Custom Lengths Available
- Ideal for Ceiling or Floor Installations
- Nine Standard Architectural Finishes
- Uses Top Loading Roll-In Glazing Gasket for 3/8" and 1/2" (10 and 12 mm) Glass
Length
120
Length of Channel
120" (3.05 m)
Size
1-3/4" x 1-11/16" (44 x 43 mm)
Finish
Brushed Stainless Steel
Type
Standard
Height
1-11/16
Width
1-3/4
Glazing Thickness
3/8, 1/2
Finish/Color
Brushed Stainless Steel
CRL Regular U-Channel with Top Load Roll-In Glazing Gasket was designed to be used with our Patch Hardware, or our Header for Overhead Door Closers with Fixed Sidelites and Door Rail System. The design allows it to be surface or recessed mounted, with the Top Load Roll-In Glazing Gasket securing the glass.
NOTE: For installations using 1/2" (12 mm) glass, the Roll-In Glazing Gasket is included in the package. If using 3/8" (10 mm) glass the Roll-In Glazing Gasket must be ordered separately.
Product Warning:
CRL Does Not Recommend Cutting This Item Due to Gauge of Metal. If a cut is needed, additional cutting charges may apply.
This material is Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
