The CRL Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with the CRL PH20A or PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for top of the door installation.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) Diameter
Holes and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

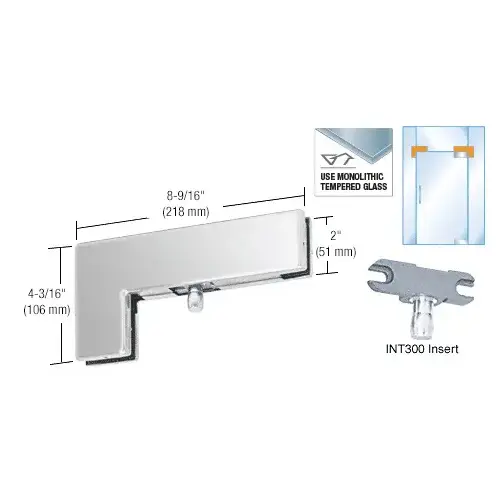

CRL PH40BS Brushed Stainless Sidelite Transom Patch With 1NT300 Insert
Item #: PH40BS by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
Glass Thickness
3/8" or 1/2" (10 or 12 mm)
Finish
Brushed Stainless
Glazing Thickness
3/8, 1/2
Finish/Color
Brushed Stainless Steel
Mounting Type
Sidelite
Insert Type
1NT300
With Insert
Yes
The CRL Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with the CRL PH20A or PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for top of the door installation.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) Diameter
Holes and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
