Designed for access control and security applications with 100 user codes. A self-contained security Keypad with a built-in 5A Relay for Electric Strikes and other security and access control applications. Security is assured with over 100 million possible combinations for the Master, User, Duress, and Quick Codes. This Keypad is supplied complete with junction box and brushed stainless steel faceplate.
SPECIFICATIONS:
Input: 12/24V AC/DC
Contacts: N.O. or N.C. 30V DC Max
Output Relay 5A
Non-Volatile Eprom Memory
Audible Confirmation Buzzer and Status LED's
Programmable N.O. or N.C. Output
Dimensions: Junction Box: 2-7/8" x 4-5/8" (74 x 117 mm); Box Depth: 1-7/8" (48 mm)
Finish: Brushed Stainless Faceplate
Product Warning:
WE ARE TEMPORARILY OUT OF THE 12/24V AC/DC DUAL VOLTAGE KEY PAD. WE HAVE A LIMITED SUPPLY AVAILABLE OF 12VDC SINGLE VOLTAGE KEY PADS AND THEY SHOULD BE ORDERED AS MLDK83N12VDC. THE MLDK83N DUAL VOLTAGE PAD WILL REPLACED BY A NEW
MODEL TO BE ADVISED WHEN AVAILABLE. FOR IMMEDIATE AVAILABILITY OF A DUAL VOLT PROGRAMMABLE KEYPAD, SEE CAT. NO. SDC920.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

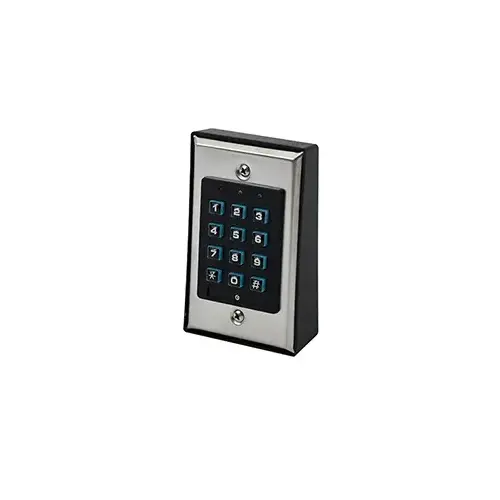

CRL MLDK83NClick To Copy Brushed Stainless Programmable Digital Keypad
Item #: MLDK83N by CR Laurence
See reviewsSee reviews
In Stock
$108.69
/eachSAVE UP TO 10.87
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 43 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 12/24 Volts AC/DC Voltage
- Designed for Access Control and Security Applications with 100 User Codes
- Four Programmable Code Levels: Master, User, Duress, and Quick
Junction Box
2-7/8" x 4-5/8" x 1-7/8" (73 x 117 x 48 mm)
Faceplate
2-3/4" x 4-1/2" (70 x 114 mm)
Shipping Weight
1 lb (454g)
Face Plate Height
4-1/2
Face Plate Width
2-3/4
Input
12/24V AC/DC
Size
2-7/8" x 4-5/8" x 1-7/8" (Junction Box)
Product Overview
Designed for access control and security applications with 100 user codes. A self-contained security Keypad with a built-in 5A Relay for Electric Strikes and other security and access control applications. Security is assured with over 100 million possible combinations for the Master, User, Duress, and Quick Codes. This Keypad is supplied complete with junction box and brushed stainless steel faceplate.
SPECIFICATIONS:
Input: 12/24V AC/DC
Contacts: N.O. or N.C. 30V DC Max
Output Relay 5A
Non-Volatile Eprom Memory
Audible Confirmation Buzzer and Status LED's
Programmable N.O. or N.C. Output
Dimensions: Junction Box: 2-7/8" x 4-5/8" (74 x 117 mm); Box Depth: 1-7/8" (48 mm)
Finish: Brushed Stainless Faceplate
Product Warning:
WE ARE TEMPORARILY OUT OF THE 12/24V AC/DC DUAL VOLTAGE KEY PAD. WE HAVE A LIMITED SUPPLY AVAILABLE OF 12VDC SINGLE VOLTAGE KEY PADS AND THEY SHOULD BE ORDERED AS MLDK83N12VDC. THE MLDK83N DUAL VOLTAGE PAD WILL REPLACED BY A NEW
MODEL TO BE ADVISED WHEN AVAILABLE. FOR IMMEDIATE AVAILABILITY OF A DUAL VOLT PROGRAMMABLE KEYPAD, SEE CAT. NO. SDC920.
