316 Brushed Stainless Laguna Series Wall Mount Single Slider Kit

Roll over image to zoom in

CRL LSWM5BS 316 Brushed Stainless Laguna Series Wall Mount Single Slider Kit

Item #: LSWM5BS by CR Laurence

See reviews See reviews
In Stock

$984.26

/each
SAVE UP TO 98.43

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Improved Anti-Lift Design
  • Assembly Contains All Necessary Hardware to Complete the Installation With 3/8" or 1/2" (10 or 12 mm) Tempered Glass
  • Alloy 316 Stainless Steel Construction

Finish

Brushed Stainless Steel

Maximum Panel Weight (Pounds)

220

Glazing Type

Tempered Monolithic

Track Length

104

Glazing Thickness

3/8 to 1/2

Material

316 Stainless Steel

Maximum panel width

53-9/16

Minimum Door Width (Inches)

37-13/16

Finish/Color

Brushed Stainless Steel

Maximum Door Height

98-7/16

Minimum Door Width

37-13/16 in. (960 mm)

Maximum Panel Weight

220 lbs. (99.8 kg)

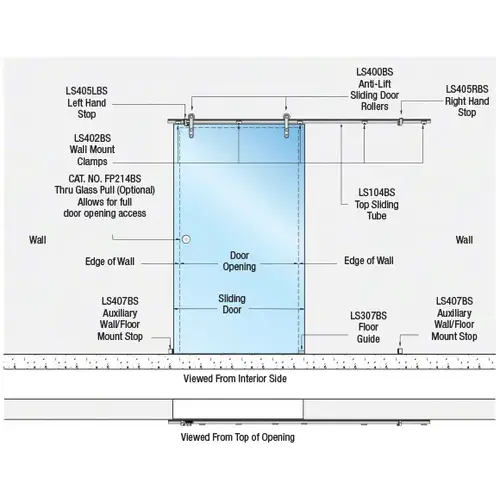

The CRL Laguna Series Wall Mount Single Slider Kit contains all the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching a single sliding door to the inside face of a sufficiently reinforced wall.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
DOOR SYSTEM LIMITATIONS
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
