CRL P1 Post Railing Kits are designed for commercial or residential installations that meet or exceed guard rail and hand rail code standards. These P1 Surface Mounted Post Railing Kits are manufactured from 2" (51 mm) square 316 Alloy Stainless Steel Tubing with 3/16" (4.8 mm) wall thickness. Kits are supplied complete with a 5" x 5" (127 x 127 mm) Base Plate, Base Cover Flange, and Welded Top Saddle. For screws to attach the Top Rail to the Saddle specify Cat. No. PRS1032. These 10-32 x 5/8" stainless steel screws come 50 per pack.
Product Warning:
All P-Series Post Kits are sold without glass attachment fittings. Those must be purchased separately.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

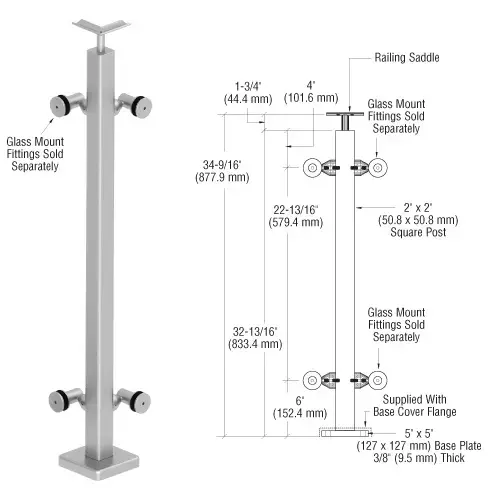

CRL P136LBS 316 Brushed Stainless 36" P1 Series 90 Degree Corner Post Railing Kit
Item #: P136LBS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
- Glass Attachment Fittings Sold Separately
- Meets or Exceeds Code Standards
- Standard Post Heights are 36" (914 mm) and 42" (1.07 m), with Custom Heights Available
- Top Saddle Supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) Diameter Schedule 40 Hand Rail Tubing
- Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available
Glass Fitting
Not Included
Height
36" (914 mm)
Grade
316
Configuration
Corner
Size
36 inch
Finish
Brushed Stainless Steel
Material
316 Stainless Steel
Finish/Color
Brushed Stainless Steel
Base Plate Length (Inches)
5
Base Plate Cover Included
Yes
Base Plate Thickness (Inches)
3/8
Base Plate Mounting Holes
4
Mounting Hole Diameter (Inch)
9/16
Mounting Hole Diameter
9/16 in. (14 mm)
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Product Overview
CRL P1 Post Railing Kits are designed for commercial or residential installations that meet or exceed guard rail and hand rail code standards. These P1 Surface Mounted Post Railing Kits are manufactured from 2" (51 mm) square 316 Alloy Stainless Steel Tubing with 3/16" (4.8 mm) wall thickness. Kits are supplied complete with a 5" x 5" (127 x 127 mm) Base Plate, Base Cover Flange, and Welded Top Saddle. For screws to attach the Top Rail to the Saddle specify Cat. No. PRS1032. These 10-32 x 5/8" stainless steel screws come 50 per pack.
Product Warning:
All P-Series Post Kits are sold without glass attachment fittings. Those must be purchased separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
