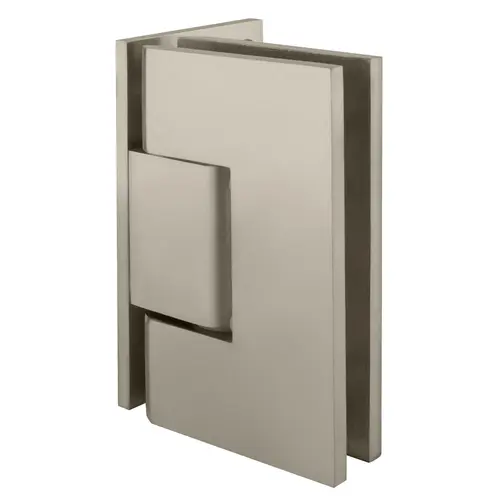

CRL V1E044BN Brushed Nickel Vienna 044 Series Wall Mount Offset Back Plate Hinge

Item #: V1E044BN by CR Laurence

22 reviews
In Stock

$63.29

/each
SAVE UP TO 6.33

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Wall Mount Offset Back Plate Standard Model
  • Use Monolithic Tempered Glass

Shipping Weight

1 lb (454g)

Width

2-1/4

Height

3-15/16

Finish

Brushed Nickel

Back Plate

Offset

Glazing Thickness

3/8, 1/2

Adjustable

No

Finish/Color

Brushed Nickel

Series

Vienna

Maximum Door Width -1/2 Glass (Inches)

32

Self-Centering

Yes

Maximum Door Width - 3/8 Glass (Inches)

34

5 Degree Pre-Set

No

Maximum Door Weight - 3 Hinges (Pounds)

130

Maximum Door Weight - 2 Hinges (Pounds)

100

Mounting Type

Wall Mount

Material

Brass

Maximum Door Width - 1/2 Glass

32 in. (813 mm)

Maximum Door Width - 3/8 Glass

34 in. (864 mm)

Maximum Door Weight - 2 Hinges

100 lbs. (45.4 kg)

Maximum Door Weight - 3 Hinges

130 lbs. (59 kg)

Maximum Door Width -1/2 Glass

32

Mounting Style

Wall mount

Height (Inches)

3-15/16

Max Dr Weight - 3 Hinges (Lbs)

130

Max Dr Weight - 2 Hinges (Lbs)

100

Width (Inches)

2-1/4

Maximum Clamping Screw Torque

60 lbf.in (677.9 cN.m)

Opening Style

Swing(side)

Enclosure Type

Corner, Niche, Bathtub, Tailor Made Solutions

Design Style

Squared
