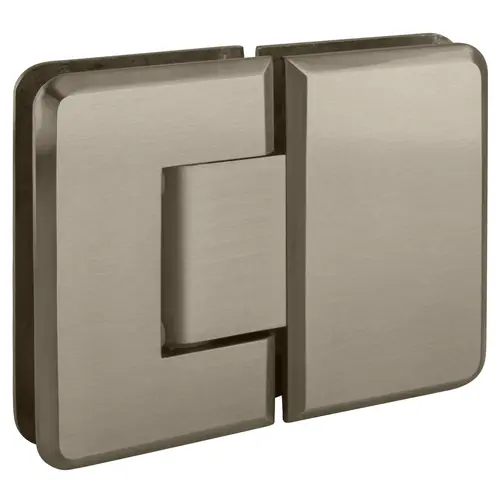

CRL P1N180BN Brushed Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
Item #: P1N180BN by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- 180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
- Self-Centering with Reversible 5 Degree Pivot Pin
- Three Year Warranty
Shipping Weight
2 lb (907g)
Height
3-1/2
Width
2-3/16" (56 mm)
Finish
Brushed Nickel
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
5/16 To 1/2
Edge Profile
Beveled
Adjustable
No
Finish/Color
Brushed Nickel
Series
Pinnacle
Width - Sidelite Portion (Inches)
2-3/16
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Width - 2 Hinges (Inches)
28
Maximum Door Width - 3 Hinges (Inches)
32
Maximum Door Weight - 3 Hinges (Pounds)
120
Maximum Door Weight - 2 Hinges (Pounds)
80
Width - Door Portion (Inches)
2-3/16
Glass To Glass Angle (Degrees)
180
Mounting Style
Glass To Glass
Height (Inches)
3-1/2
Max Dr Weight - 3 Hinges (Lbs)
120
Width - Sidelite Portion (Inch
2-3/16
Max Dr Weight - 2 Hinges (Lbs)
80
Width (Inches)
2-3/16
Max Dr Width - 3 Hinges (Inch)
32
Max Dr Width - 2 Hinges (Inch)
28
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges
28
Maximum Door Width - 3 Hinges
32
Width - Sidelite Portion
2-3/16
Width - Door Portion
2-3/16 in. (56 mm)
