CRL Junior Traditional Style Fixed Panel U-Clamp mounts directly to the wall, ceiling or floor to secure vertical fixed glass panels. The corners are rounded off. Clearance between the glass and wall is from 5/32" to 3/16" (4 to 5 mm). Clear Silicone can be used to provide a clean, water resistant seal.
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm)
Material: Solid Brass
Includes: Mounting Screw and Clear Gaskets
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL UC66BN Brushed Nickel Junior Traditional Style Fixed Panel U-Clamp
Item #: UC66BN by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- For 1/4" (6 mm) Thick Glass Only
- Glass Fabrication Required to Accommodate Clamps
- Solid Brass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures

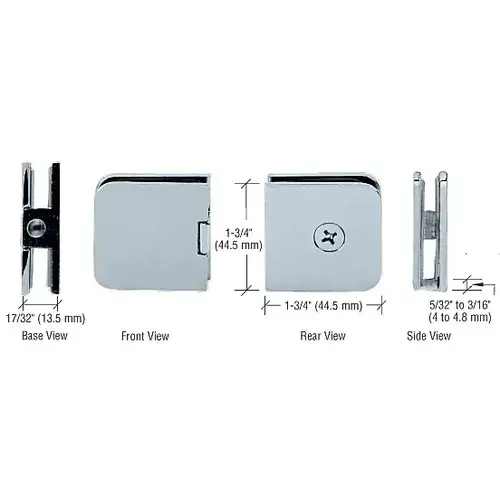

Height
1-3/4" (44.5 mm)
Width
1-3/4" (44.5 mm)
Size
1-3/4" (44 mm) Wide x 1-3/4" (44 mm) High
Clearance Gap
5/32" to 3/16" (4 to 5 mm)
Hole Diameter Required
5/8" or 3/4" (16 or 19 mm)
Finish
Brushed Nickel
Mounting Type
Wall Mount
Material
Brass
Glazing Thickness
1/4
Finish/Color
Brushed Nickel
Mounting Style
Wall mount
Height (Inches)
1-3/4
Width (Inches)
1-3/4
Product Overview
CRL Junior Traditional Style Fixed Panel U-Clamp mounts directly to the wall, ceiling or floor to secure vertical fixed glass panels. The corners are rounded off. Clearance between the glass and wall is from 5/32" to 3/16" (4 to 5 mm). Clear Silicone can be used to provide a clean, water resistant seal.
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm)
Material: Solid Brass
Includes: Mounting Screw and Clear Gaskets
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
