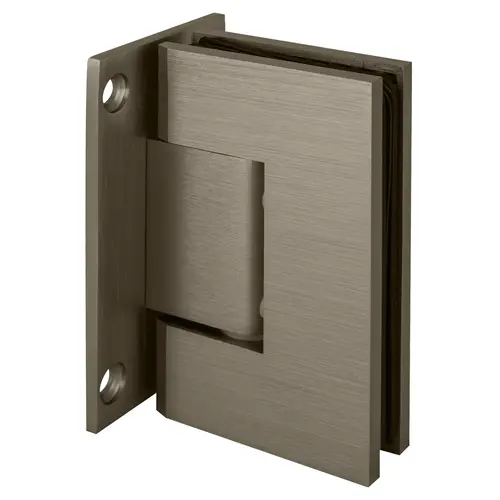

Our CRL International Series Hinge blends value with performance. Offered in both traditional square cornered style, and also with modern beveled edges, the International Series Hinge provides design flexibility. Wall Mount with Full Back Plate and 180 Degree Glass-to-Glass Models cover the majority of popular installation configurations. The solid brass International Series Hinge will accommodate 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) thick tempered glass. They are stocked in popular polished chrome and brushed nickel finishes.
Using two hinges with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) glass the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) glass the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness Range: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 10 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use.
