CRL Estate Hinges for 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass are a uniquely classic design combining mitered edges with curved corners. They are made of solid brass with stainless steel springs. Choose from the elegant Wall Mount Hinge or 90 degree, 135 degree, and 180 degree Glass-to-Glass styles. The self-centering action of the Estate Series Hinge allows the door to be maintained in any position, except when within 15 degree of the closed position, where they are tapered to assist in centering the door.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" of 34" (864 mm) and a maximum door width for 1/2" of 30" (762 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm)Tempered Safety Glass
Special Features: Classic design combines mitered edges with curved corners.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

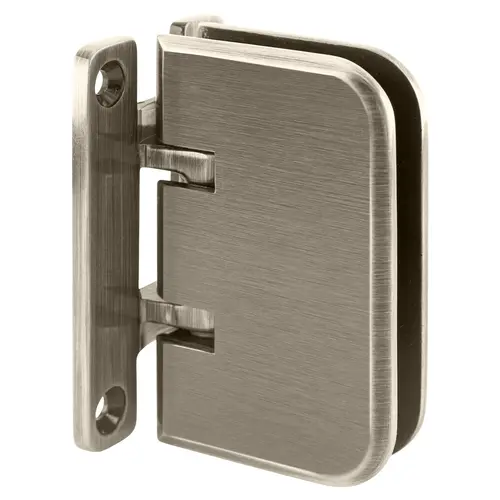

CRL EST037BN Brushed Nickel Estate 037 Series Wall Mount 'H' Back Plate Hinge
Item #: EST037BN by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Self-Centering Action
- Wall Mount
- Use Monolithic Tempered Glass
Shipping Weight
2 lb (907g)
Height
3-1/2
Width
2-1/8
Finish
Brushed Nickel
Back Plate
'H'
Glazing Thickness
3/8, 1/2
Edge Profile
Beveled
Adjustable
No
Finish/Color
Brushed Nickel
Series
Estate
Maximum Door Width - 1/2 Glass - 3 Hinges
30"
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Weight - 3 Hinges
120 Lbs.
Maximum Door Weight - 2 Hinges
80 Lbs.
Maximum Door Width - 3/8 Glass - 2 Hinges
28"
Maximum Door Width - 3/8 Glass - 3 Hinges
34"
Maximum Door Width - 1/2 Glass - 2 Hinges
26"
Mounting Type
Wall Mount
Material
Brass
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Product Overview
CRL Estate Hinges for 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass are a uniquely classic design combining mitered edges with curved corners. They are made of solid brass with stainless steel springs. Choose from the elegant Wall Mount Hinge or 90 degree, 135 degree, and 180 degree Glass-to-Glass styles. The self-centering action of the Estate Series Hinge allows the door to be maintained in any position, except when within 15 degree of the closed position, where they are tapered to assist in centering the door.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" of 34" (864 mm) and a maximum door width for 1/2" of 30" (762 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm)Tempered Safety Glass
Special Features: Classic design combines mitered edges with curved corners.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
