Brushed Nickel Cologne 092 Series 90 degree Glass-to-Glass Hinge

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

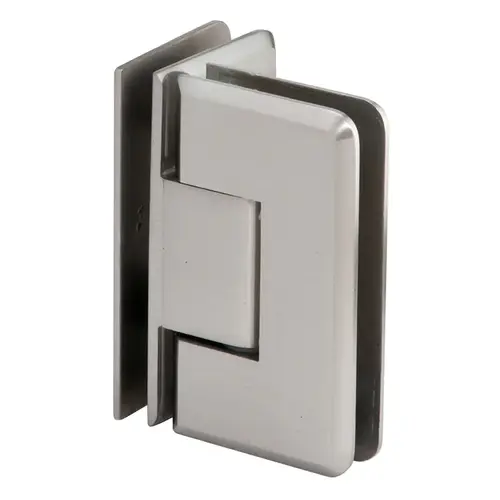

CRL C0L092BN Brushed Nickel Cologne 092 Series 90 degree Glass-to-Glass Hinge

Item #: C0L092BN by CR Laurence

See reviewsSee reviews
In Stock

$120.23

/each
SAVE UP TO 12.02

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • 90º Glass-to-Glass
  • Use Monolithic Tempered Glass

Shipping Weight

2 lb (907g)

Width

2-1/4" (57 mm)

Height

3-15/16

Finish

Brushed Nickel

Mounting Type

Glass To Glass

Material

Brass

Glazing Thickness

3/8 to 1/2

Maximum Door Width

36

Edge Profile

Beveled

Finish/Color

Brushed Nickel

Series

Cologne

Width - Sidelite Portion (Inches)

2-1/4

Self-Centering

Yes

Maximum Door Weight - 3 Hinges (Pounds)

140

Maximum Door Weight - 2 Hinges (Pounds)

110

Width - Door Portion (Inches)

2-1/4

Glass To Glass Angle (Degrees)

90

Mounting Style

Glass To Glass

Height (Inches)

3-15/16

Max Dr Weight - 3 Hinges (Lbs)

140

Width - Sidelite Portion (Inch

2-1/4

Max Dr Weight - 2 Hinges (Lbs)

110

Maximum Door Weight - 2 Hinges

110 lbs. (49.9 kg)

Maximum Door Weight - 3 Hinges

140 lbs. (63.5 kg)

Width - Sidelite Portion

2-1/4

Width - Door Portion

2-1/4 in. (57 mm)

Maximum Clamping Screw Torque

60 lbf.in (677.9 cN.m)

Opening Style

Swing(side)

Enclosure Type

Corner, Tailor Made Solutions

Design Style

Beveled
