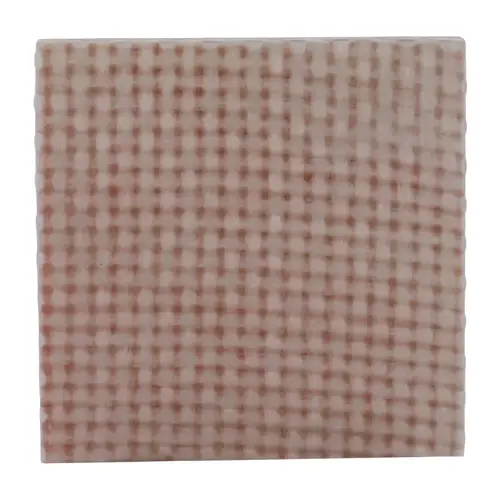

An ideal choice for securing rooms, counters, booths and walls of secure enclosures, Bullet Resistant Wall Panels can protect the space from security threats. These wall panels protect the people inside from any usage of a firearm, bringing the highest form of security to banks, police stations, jails, malls, pharmacies and businesses or places where cash is handled.
Other features
The densely packed structure of the panel exhibits an excellent capability to absorb multiple impacts from high velocity projectiles, limiting ricochet or shattering.
Flat sheets of a polyester laminate reinforced with a fiberglass scrim to create a material with superior durability.
Fiberglass panels for high-performance bulletproof applications. Our fiberglass composite panels are woven in-house, from a roving ballistic-grade fiberglass. This allows us to maximize the ballistic performances of our fiberglass panels, through proper de-lamination and reliable projectile retention.
The cloth is treated with a thermoset resin via mechanical injection and placed in a hydraulic hot press, where it is formed into flat, rigid sheets.
Most commonly used protection against hand guns of super power
Multiple layers of woven roving ballistic grade fiberglass cloth woven in house impregnated with a thermoset polyester resin and compressed into flat rigid sheets designed to capture projectiles
It can be used in your security wall, panic room, safe room, or anywhere a ballistic protective barrier is desired or replacement for your wall board.
Applications- Utilities, Police Stations & Gov.Facilities
Properties- Tensile Strength LW @ 25°C:- 45K PSI Tensile Strength CW @ 25°C:- 40K PSI Tensile Modulus AVG @ 25°C:- 3.75 X 10⁶PSI Flexural Strength LW @ 25°C:- 16.8K PSI Flexural Modulus LW @ 25°C:- 2.7 X 10⁶PSI Compressive Strength @:- 25°C 70K PSI IZOD Impact Strength:- 52 ft.lb/in Water Absorption:- <1.4 % by wt Specific Gravity:- 2 Barcol Hardness:- 50 Coefficient of Thermal Expansion:- 2in/in/°Cx10⁻ ⁵ Thermal Conductivity:- 2 BTU/HR/ft²/in/°F
