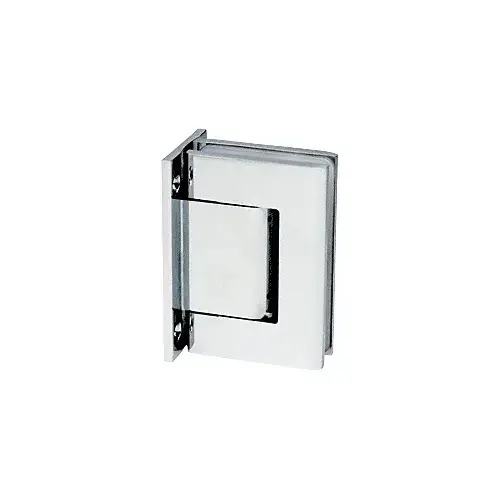

This CRL Full Back Plate Wall Mount Hinge swings in and out a full 90 degrees, with stops at 0, +90, and –90 degrees. Closing speed can be adjusted, making it a great alternative to floor closers and patch fittings. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg). Designed for use on interior doors in damp and humid environments and high temperatures, such as steam rooms, Turkish baths and shower doors.
This Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. It allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). A control valve lets you adjust the hinge to the desired closing speed. And it is ambidextrous, with positive stops at 0 and 90 degrees, giving you even more design freedom.
This Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. It has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Degrees Inwards and Outwards (Except 31M8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0 to 80 Degrees
Special Feature: Holds Open at 90 Degrees; Adjustable Closing Speed. No Hold Open Models Available (Except 31M8060 Model).
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)
NOTE: Do not use more than two hinges on one door. Not suitable for exterior and outdoor use. For exterior and outdoor use we recommend 31M8015CPS. Important Notes: Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the DK Hardware Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
