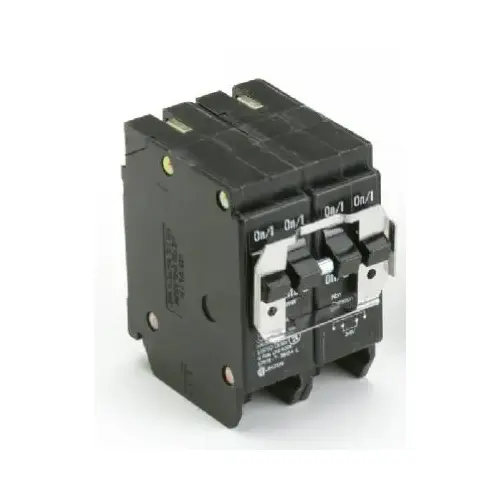

Eaton BQ230250 Circuit Breaker with Rejection Tab, Quad, Type BQ, 30/50 A, 4 -Pole, 120/240 V Black
Item #: BQ230250 by Eaton Corporation
UPC #: 786676371100
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Voltage
120/240
Mounting Type
Plug
Warranty
10 years per the Warranty Policy
Certifications
CSA US, UL
Amperage
50 Amp
Phase
Both
Manufacturer Warranty
10 years
Breaker Type
Quad
Certifications and Listings
ANSI Certified, CSA Listed, UL Listed
Circuit Breaker Type
Quadplex
Maximum Amperage
50
Number of Poles
4
Product Depth (in.)
2.886
Product Height (in.)
3.109
Product Width (in.)
1.968
Pack Size
1
UNSPSC
39121601
Packaging Type
Bulk
Indoor or Outdoor
Indoor
Circuit Protection Type
Plug In
CSA Listed
Yes
Defective Code
A
Each Weight
0.760 LB
Hazardous Material
No
Returnable
Yes
Sub Brand
Cutler-Hammer
Velocity
C
Alternative UPC
786676371100
Volts
120/240 V
Depth
2.89"
Width
2.00
UL Listed
Yes
Height
2.90
AMPS
30/50 amps
Product Type
Circuit Breaker
ECCN
EAR99
Country Origin Code
DO
Length
3.10
Dimensions
3.1 in L x 1.97 in W x 2.88 in H
Type
Quad Type BQ
Operating Temperature
60 to 75 deg C
Wire Size
14 to 4 AWG
Number of Phases
1
Number of Spaces
2
Terminal Type
Feed-Thru
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Nomenclature
BQ230250 QUAD BREAKER DBL POLE
Actuator Type
Magnetic Thermal
Current Rating
30/50 A
Product Overview
CIRCUIT BRKR BQ 4P 2-30A/2-50A
Specifications:
Specifications:
Dimensions: 3.1 in L x 1.97 in W x 2.88 in H
Suitable for: BR Series Load Centers
CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,.
