Bohle-Portals BA5216850 ALVA E3 - Door Opening with Hinge-Side Panel - Standard Duty, HO90 - Matte Black

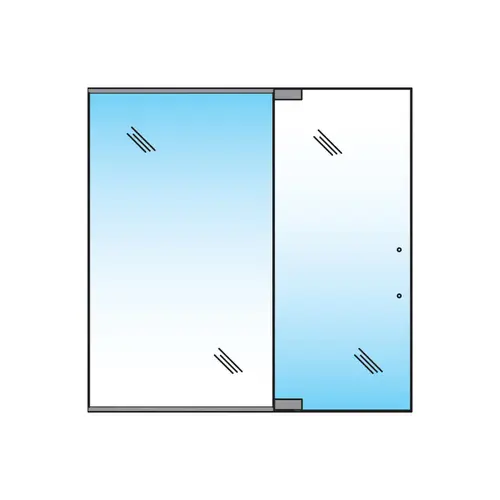

Bohle is proud to present Alva Elevations, an innovative swing door and partition hardware program that makes it simple to glaze the entire opening. Using the new Alva self-closing door patch system as the foundation, the glass hardware requirements for the opening can be selected, quoted, and ordered under a simple part number. Single and double doors, doors with sidelites, as well as combinations with glass transoms can be selected with Alva Elevations.

Product Highlights

• Quick installation without floor recess
• Only two drill holes required
• Clean installation with no visible mounting points
• Easy adjustment
• Black inserts for subdued look

Technical Information

• Door width 29-1/2" - 39-3/8" Up to 49” with HD version (749mm - 1000mm up to 1245mm with HD)
• Maximum door height 108" (2590 mm)
• Maximum door weight 220 lbs (100 kg)
• Glass thickness tempered glass 5/16" - 1/2" (8 - 12 mm)
• Adjustable closing speed from 170 degree - 15 degree and 15 degree - 0 degree
• Adjustable zero position ±3 degree
• For averagely frequented buildings
• Tested by ift Rosenheim with 500,000 cycles as per DIN EN 1154
• Can be used with stopper
• Suitable for indoor and covered outdoor use
• DIN EN 1670 Corrosion resistance level 3: Outdoor areas where occasional or frequent moisture, rain or dew may occur
• Temperature operation -4 F to +122 F (-20 degree - +50 degreeC)
• Patch size: 7-1/4" x 2-3/4" (184 x 70 mm)
• Do not use with laminated safety glass
• Do not use as a shower door

INCLUDED IN DELIVERY

• 1x Top Pivot Plate
• 1x PT20 PLUS Top Patch
• 1x Bohle Alva Self Closing Hydraulic Bottom Patch
• 1x Bottom Patch Mounting Plate
• 1x Bohle 1-part Top Channel (94” length)
• 1x Bohle 2-part Bottom Channel (94” length)
• 1x Bohle Gasket for 1/2” Glass (Inner)
• 1x Bohle Gasket for 1/2” Glass (Outer)

* For use with the Bohle 1 and 2-Part channel, Alva Elevations with transoms and sidelites are preselected for use with 1/2” glass. For other glass thickness, please order components seperately or ask your Bohle Technical Representative for assistance.
