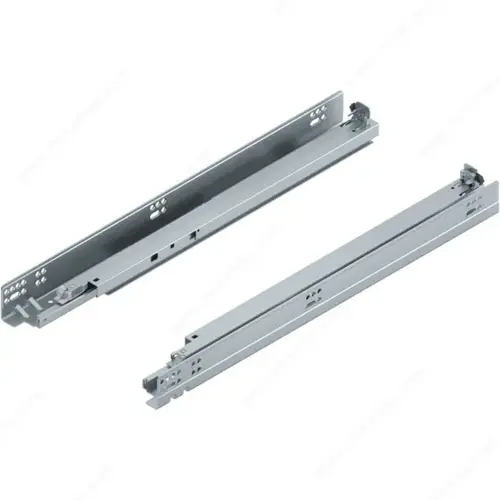

Blum-USA 563F5330BClick To Copy TANDEM plus 563F Full Extension Concealed Undermount Slide with BLUMOTION for Framed Cabinet Pair
Item #: 563F5330B by Blum-USA
See reviewsSee reviews
HURRY! Low in stock
$45.25
/pairSAVE UP TO 4.53
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Length
21 in
Load Capacity
100 lb
BLUM Technology
Blumotion
Motion Technology
Soft-Close
Slide Extension
Full Extension
Slide Mounted
Undermounted
Product Overview
This product provides four-dimensional adjustment
- Side-to-side, 1.5 mm (front and rear)
- Height, 3 mm
- Tilt, 5 mm
- Depth, with optional locking device, 2.5 mm
- Depth, with elongated holes, plus or minus 4.5 mm
Maximum drawer thickness of 3/4 in (19 mm)
Advantages And Benefits
- Integrated BLUMOTION soft close
- Wide range of drawer lengths from 9" to 30", in 3" increments
- Runners for 21/32" to 3/4" drawer material thickness
- Bottom mount holes for mounting to a fixed shelf or a flush bottom cabinet
- Available for standard and heavy-duty applications
- Excellent stability and less sag even when drawer is fully loaded
- Bearing block for consistent reveal even in fully loaded drawer
- Rear notch increases to 35 mm to accomodate new side-to-side adjustment
- Same drawer box construction as the curent TANDEM runners
- Same drilling pattern as current 562/568 TANDEM plus BLUMOTION concealed runners
- Side-to-side, 1.5 mm (front and rear)
- Height, 3 mm
- Tilt, 5 mm
- Depth, with optional locking device, 2.5 mm
- Depth, with elongated holes, plus or minus 4.5 mm
Maximum drawer thickness of 3/4 in (19 mm)
