115v 3.8gph C-600p Diaphragm Metering Pump

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

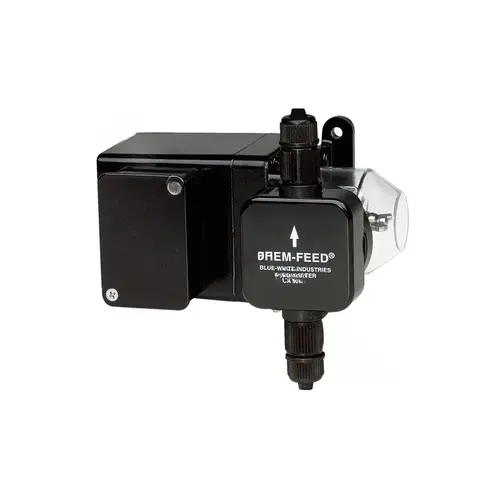

Blue White Industries C-645P 115v 3.8gph C-600p Diaphragm Metering Pump

Item #: C-645P by BLUE WHITE INDUSTRIES

See reviewsSee reviews

$607.40

/each
SAVE UP TO 60.74

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Easy access, side mounted mechanical output rate adjustment
  • NEMA type 1 (IP20) enclosure rating
  • Double ball inlet and outlet cartridge type ceramic check valves
  • PVDF valve body and fitting, ceramic balls, FKM and TFE/P o-rings
  • Superior pump head design of precision molded polypropylene
  • PTFE coated EP diaphragm
  • All ball bearing, permanently lubricated gear motor for smooth, powerful operation
  • Polypropylene injection check valve with FKM and TFE/P o-rings and spring loaded ceramic ball seal
  • PVDF suction (foot) valve with FKM and TFE/P o-rings, ceramic check ball and removable polypropylene filter screen
  • 1000 centipose viscosity

Dimension

6-1/4 Inch H x 6-3/4 Inch W x 5-5/16 Inch D

Application

For water treatment and conditioning, soap, wax and detergent injection, wastewater treatment, biocide feed, rural water systems, cooling tower and boiler, fertilizer and nutrient injection treatment, pool chlorination and pH control

Brand

Blue White Industries

Department

FEEDERS | CHLORINATORS | SANTIZERS

FlowRate

91 gpd/3.8 gph

Forusewith

Chemical Feeders

FrequencyRating

60 Hz

HousingMaterial

Polypropylene

Item

Diaphragm Metering Pump

MaximumSuctionLift

10 ft Water at 0 psi

MotorRPM

45

OperatingTemperature

130 deg F

StandardsApprovals

ETL Listed, CE, NSF Certified

SubBrand

Chem-Feed®

VoltageRating

115 V

RPM

45

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Maximum Suction Lift

10 foot

Temperature Rating Max

130 degrees Fahrenheit

Master Carton Quantity

1

Each Product Weight

0 pound

Temperature Rating Min

130 degrees Fahrenheit

Minimum Sell Quantity

1

Frequency Rating (Hz)

60

Flow Rate Min

91 gal/day

Standards Approvals

NSF Certified

Flow Rate Max

91 gal/day

Product Overview

Blue White Industries C-645P Chem-Feed(R) C-600P Diaphragm Metering Pump For Chemical Feeders; 91 gpd/3.8 gph, Polypropylene, 115 V-60 Hz
