The CRL 4" (102 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant. Also available in this size are our 4" (102 mm) Tapered Sidelite Rails to match our Tapered Door Rails.
Available in several finishes in 120" (3.05 mm) lengths and two finishes in extra long 240" (6.10 mm) lengths, they match heights to both floor mounted and 1/2" (12 mm) threshold doors using our Reversible Saddle. Use the Sidelite Rails alone for your upper rails, and with our Aluminum Neoprene Setting Blocks, lifting the glass into the upper rail and lowering into the bottom rail. This will give you a 9/16" (14.3 mm) glass retention in both the top and bottom channels. Complete the job by installing theRoll-In EPDM Gaskets and matching finish End Caps.
ORDERING INFORMATION:Sidelite Rails on this page come with vinyl to glaze 3/4" (19 mm) glass. If using 5/8" (16 mm) glass, GG38 Series Vinyl must be ordered separately. All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.10 m) lengths. Custom lengths and finishes are available. SREC4S Series End Caps (for 3/4" Glass) and Cat. No. UCSB4 Setting Blocks must be ordered separately.
Product Warning:
Shown with End Caps which must be ordered separately. Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

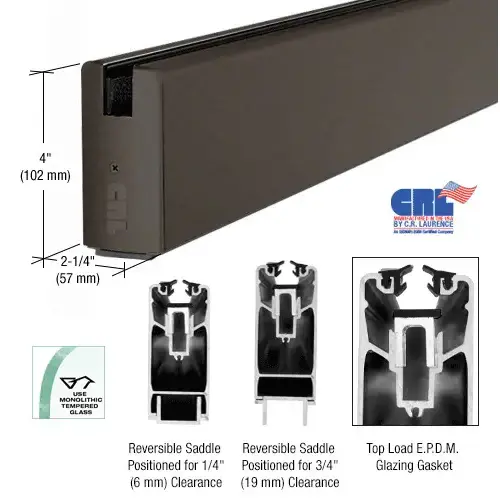

CRL SR4SDU34CL Black Bronze Anodized 4" Custom Length Square Sidelite Rail for 3/4" Glass
Item #: SR4SDU34CL by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
- Provides Even Sightline With Our Door Rails
- Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
- Use Monolithic Tempered Glass
- Matching Door Rails Available for an Even Sightline
Length
Custom
Finish
Dark Bronze Anodized
Width
2-1/4
Glazing Thickness
3/4
Glazing Type
Monolithic Tempered Glass
Finish/Color
Black Bronze Anodized
Height
4
Product Overview
The CRL 4" (102 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant. Also available in this size are our 4" (102 mm) Tapered Sidelite Rails to match our Tapered Door Rails.
Available in several finishes in 120" (3.05 mm) lengths and two finishes in extra long 240" (6.10 mm) lengths, they match heights to both floor mounted and 1/2" (12 mm) threshold doors using our Reversible Saddle. Use the Sidelite Rails alone for your upper rails, and with our Aluminum Neoprene Setting Blocks, lifting the glass into the upper rail and lowering into the bottom rail. This will give you a 9/16" (14.3 mm) glass retention in both the top and bottom channels. Complete the job by installing theRoll-In EPDM Gaskets and matching finish End Caps.
ORDERING INFORMATION:
Product Warning:
Shown with End Caps which must be ordered separately. Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
