The CRL DC54 Size 4 Surface Mount Door Closer is perfect for most commercial applications. The Size 4 spring is suitable for interior doors up to 48" (122 mm) and exterior doors up to 42" (107 mm). Applicable door weight should be between 143 and 187 lbs. (65 and 85 kg). The closer is supplied with an adjustable back check feature to protect the doors and hardware from damage due to wind or violent door swings in the opening cycle. Both the closing and latching speeds are independently adjustable and will satisfy your customer's requirements for smooth operating door control. All CRL Surface Mounted Closers are UL listed and warranted for ten years. A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.
Increase customer recognition with customized private labeling. CRL DC53, DC54 and DC55 models are available in plain boxes and are ready to be Private Labeled. To discuss the program and pricing in detail contact DK Hardware Sales.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

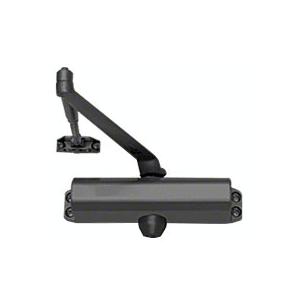

CRL DC54BLK Black ANSI Grade 1 Spring Size 4 Surface Mount Door Closer
Item #: DC54BLK by CR Laurence
11 reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Engineered for Commercial and Residential Use
- Dual Valve Closing and Latching Speed Control
- Reversible for Standard, Top-Jamb, and Parallel Arm Installations on Aluminum, Metal, and Wood Doors
- Aluminum and Dark Bronze Finishes
- Custom Colors Available
- ANSI A156.4 Grade 1
- UL Listed
Horizontal Mounting Holes
9-1/16" (230 mm) Center-to-Center
Shipping Weight
7 lb (3.18kg)
Vertical Mounting Holes
3/4" (19 mm) Center-to-Center
Closer Body Length
9-3/4" (247 mm)
Finish
Black
Spring Size
4
UL Listed
Yes
Door Weight
143-187
Certification
ANSI A156.4 Grade 1
Closer Type
Surface Mount
Finish/Color
Black
Horizontal Mounting Holes (Center To Center)
9-1/16
Maximum Door Width - Exterior
42 Inches
Vertical Mounting Holes (Center To Center) (Inches)
3/4
Maximum Door Width - Interior
48 Inches
Body Length
9-3/4
Vertical Mounting Holes Center To Center
3/4
Product Overview
The CRL DC54 Size 4 Surface Mount Door Closer is perfect for most commercial applications. The Size 4 spring is suitable for interior doors up to 48" (122 mm) and exterior doors up to 42" (107 mm). Applicable door weight should be between 143 and 187 lbs. (65 and 85 kg). The closer is supplied with an adjustable back check feature to protect the doors and hardware from damage due to wind or violent door swings in the opening cycle. Both the closing and latching speeds are independently adjustable and will satisfy your customer's requirements for smooth operating door control. All CRL Surface Mounted Closers are UL listed and warranted for ten years. A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.
Increase customer recognition with customized private labeling. CRL DC53, DC54 and DC55 models are available in plain boxes and are ready to be Private Labeled. To discuss the program and pricing in detail contact DK Hardware Sales.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
