CRL 100+ Load Bearing Butyl Architectural Glazing Tape is made from a blend of rubber polymers. It is designed for glazing large lites of glass exceeding 100"* without the need for spacer shims. 100+ Tape transfers high wind loads evenly, from the glass to the window frame, and will accommodate high wind loading at elevated temperatures. It enables the project to be glazed from the inside. The 100 percent solids content formula will not shrink or absorb moisture, but will compress to accommodate variances in pocket width. It comes on release paper rolls and is positioned for quick alignment during installation. Application temperature range is 20 degree to 120 degree (-7 degree to 49 degreeC), and life expectancy if properly applied is 20 years.
APPLICABLE STANDARDS: AAMA 804.3, 806.3, and 807.3, ASTM C1281.
TYPICAL PROPERTIES:
Base Polymer: butyl rubber (polyisobutylene)
Solids Content: 100% solids (no asbestos).
Cure Time: Fully cured before application.
Hardness: 20 durometer Shore "A" @ 77 degree (25 degreeC).
Temperature Range: Application 20 degreeF (-7 degreeC) to 120 degree (49 degreeC); Service -40 degreeF (-40 degreeC) to 190 degreeF (88 degreeC).
VOC Content: 0%. Joint Movement: 15% of joint width.
Service Life: 20 year minimum.l cap bead (such as silicone) to prevent over compression or use CRL 100+ Load Bearing Glazing Tape.
Product Warning:
NOTE: United Inches = width + height
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

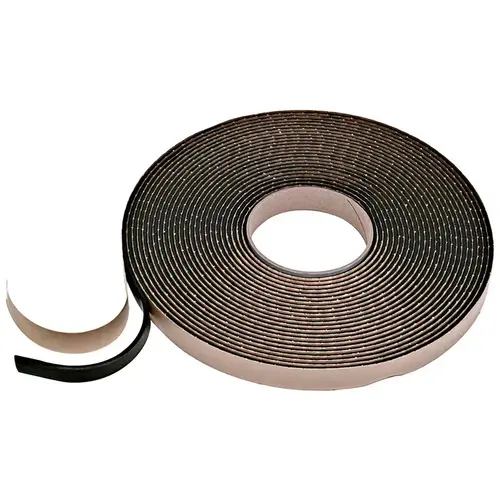

CRL GT804 Black 1/8" x 3/8" 100+ Load Bearing Butyl Architectural Glazing Tape
Item #: GT804 by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 100% Solids Content
- Accommodates High Windloading Even at Elevated Temperatures
- Black Color
- For High Performance Glazing of Large Lites of Glass Exceeding 100 United Inches* Without the Need for Spacer Shims
Width of Tape
3/8 in (9.5 mm)
Roll Length
40' (12.2 m)
Thickness of Tape
1/8" (3 mm)
Thickness
1/8
Width
3/8
Feet per Roll
40 ft (12 m)
Color
Black
Type
Butyl
Finish/Color
Black
Roll Length (Feet)
40
Finish
Black
Product Overview
CRL 100+ Load Bearing Butyl Architectural Glazing Tape is made from a blend of rubber polymers. It is designed for glazing large lites of glass exceeding 100"* without the need for spacer shims. 100+ Tape transfers high wind loads evenly, from the glass to the window frame, and will accommodate high wind loading at elevated temperatures. It enables the project to be glazed from the inside. The 100 percent solids content formula will not shrink or absorb moisture, but will compress to accommodate variances in pocket width. It comes on release paper rolls and is positioned for quick alignment during installation. Application temperature range is 20 degree to 120 degree (-7 degree to 49 degreeC), and life expectancy if properly applied is 20 years.
APPLICABLE STANDARDS: AAMA 804.3, 806.3, and 807.3, ASTM C1281.
TYPICAL PROPERTIES:
Base Polymer: butyl rubber (polyisobutylene)
Solids Content: 100% solids (no asbestos).
Cure Time: Fully cured before application.
Hardness: 20 durometer Shore "A" @ 77 degree (25 degreeC).
Temperature Range: Application 20 degreeF (-7 degreeC) to 120 degree (49 degreeC); Service -40 degreeF (-40 degreeC) to 190 degreeF (88 degreeC).
VOC Content: 0%. Joint Movement: 15% of joint width.
Service Life: 20 year minimum.l cap bead (such as silicone) to prevent over compression or use CRL 100+ Load Bearing Glazing Tape.
Product Warning:
NOTE: United Inches = width + height
