This CRL B5A Series Surfacemate Square Base Shoe is used as the base channel for glass railing systems. It can be clad in several choices of architectural finishes. The most critical component in a railing system is the proper attachment of the base shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3mm) / -1/16 (1.5mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

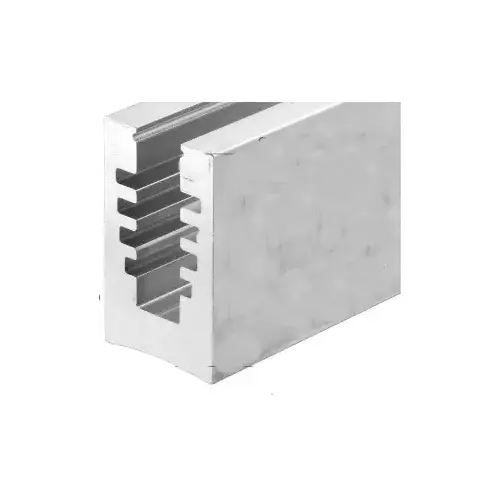

CRL B5A10D B5A Series Mill 120" Square Bottom Mount Base Shoe Drilled for 1/2" Glass
Item #: B5A10D by SurfaceMate
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Adjustable Angle Base Shoe and Shimming System for Dry Glazing 1/2" (12 mm) Monolithic Tempered Glass
- Drilled and Counter Bored 12" (305 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
- Custom Cutting and Mitering Service Available
- 6063 Alloy - T52 Temper
Hole Size
9/16" (14.3 mm)
Stock Length
120" (3.05 m)
Counter Bore X Depth
7/8" (22 mm) x 1/2" (12.7 mm)
Center-to-Center
12" (305 mm)
Brand
SurfaceMate
Height
4-3/16
Finish
Mill
Material
Aluminum
Length
120
Width
2-1/2
Glazing Thickness
1/2
Glazing Type
Monolithic
Drilling Center to Center
12
Finish/Color
Mill
Product Overview
This CRL B5A Series Surfacemate Square Base Shoe is used as the base channel for glass railing systems. It can be clad in several choices of architectural finishes. The most critical component in a railing system is the proper attachment of the base shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3mm) / -1/16 (1.5mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
