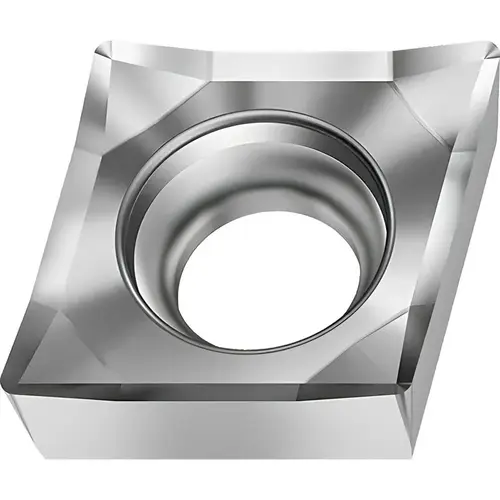

Turning Insert: CCGT32.50.5-MN2 WN10, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 8132966-XCP10Click To Copy Turning Insert: CCGT32.50.5-MN2 WN10, Solid Carbide - pack of 10

Item #: 8132966-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary

$285.08

/package
SAVE UP TO 28.51

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

CCGT-MN2

Side Clearance

Positive

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0080

Manufacturers Catalog Number

8132966

Material Grade

N10

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3810

Coating Classification

Uncoated

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3810

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Lead Angle

80

Maximum Depth of Cut (Decimal Inch)

0.0780

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Superalloys & Titanium

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/128

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

C

Rake Angle

25

Full Radius

No

Insert Shape Code

C

Chip Breaker

MN2

Secondary Workpiece Material Code

S

Insert Style

CCGT

Insert Size Code

32.50.5

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

1.98

Chip Breaker Operation

Roughing

Manufacturer Grade

WN10

ISO Size Code

09T302

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

32.50.5

ISO Insert Code

CCGT09T302

Proprietary Coating Designation

Uncoated

Iso Code

CCGT09T302-MN2 WN10

ANSI Insert Code

CCGT32.50.5

Product Overview
Turning Insert: CCGT32.50.5-MN2 WN10, Solid Carbide Uncoated, Neutral, 0.381" Long, 3/8" Inscribed Circle, 0.008" Corner Radius, 80 degree Diamond, Series CCGT
