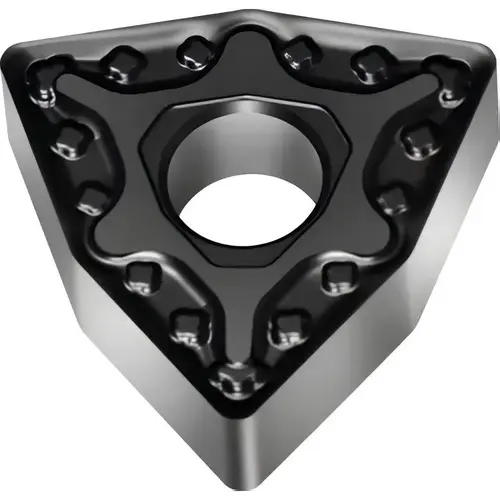

Turning Insert: WNMG432-MM5 WSM10S, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7251991Click To Copy Turning Insert: WNMG432-MM5 WSM10S, Solid Carbide TiAlN

Item #: 7251991 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$28.79

/each
SAVE UP TO 2.88

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 90 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

6

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

WNMG-MM5

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

7251991

Material Grade

M1

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.684

Width (mm - 2 Decimals)

8.69

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6840

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.3420

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Trigon

Clearance Code

N

Rake Angle

20

Full Radius

No

Insert Shape Code

W

Chip Breaker

MM5

Secondary Workpiece Material Code

P

Insert Style

WNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Manufacturer Grade

WSM10S

Length Range (Decimal Inch)

0.6500 - 0.7000

Proprietary Coating Designation

WSM10S

Iso Code

WNMG080408-MM5 WSM10S

Product Overview
Turning Insert: WNMG432-MM5 WSM10S, Solid Carbide TiAlN & Al2O3 Coated, Neutral, 0.342" Long, 1/2" Inscribed Circle, 0.031" Corner Radius, 80 degree Trigon, Series WNMG
