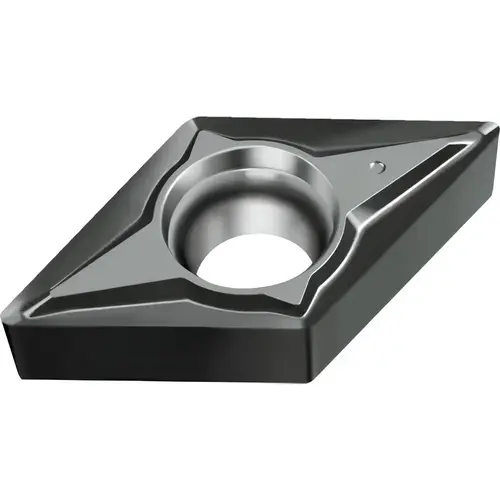

Turning Insert: DCGT11T304-FN2 WNN10, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6955654-XCP10Click To Copy Turning Insert: DCGT11T304-FN2 WNN10, Solid Carbide - pack of 10

Item #: 6955654-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$342.65

/package
SAVE UP TO 34.27

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Insert Thickness

3.97

Included Angle

55degree

Insert Material

Carbide

Series

DCGT-FN2

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

6955654

Material Grade

N10

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Width (mm - 2 Decimals)

11.63

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4580

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Lead Angle

55degree

Maximum Depth of Cut (Decimal Inch)

0.4580

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

11.63

Corner Radius (Inch)

1/64

Insert Shape

Diamond 55

Clearance Code

C

Rake Angle

18

Full Radius

No

Insert Shape Code

D

Chip Breaker

FN2

Secondary Workpiece Material Code

P

Insert Style

DCGT

Insert Size Code

32.51

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

11.63

Manufacturer Grade

WNN10

Length Range (Decimal Inch)

0.4000 - 0.5000

Inscribed Circle (mm)

9.53

Corner Radius (mm)

0.40

Proprietary Coating Designation

WNN10

Iso Code

DCGT11T304-FN2 WNN10

Product Overview
Turning Insert: DCGT11T304-FN2 WNN10, Solid Carbide TiAlN Coated, Neutral, 11.63 mm Long, 9.53 mm Inscribed Circle, 0.4 mm Corner Radius, 55 degree Diamond, Series DCGT-FN2
