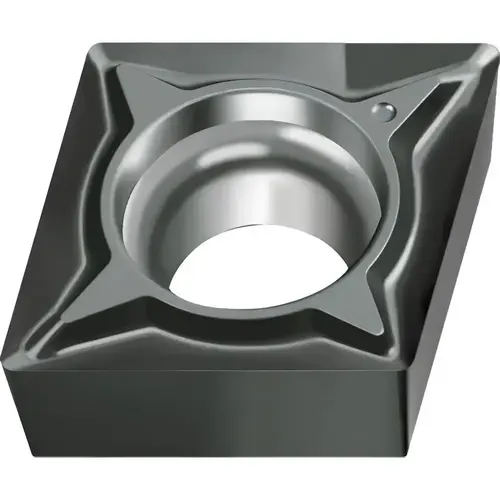

Turning Insert: CCGT432-FN2 WNN10, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6955648Click To Copy Turning Insert: CCGT432-FN2 WNN10, Solid Carbide TiAlN

Item #: 6955648 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$36.28

/each
SAVE UP TO 3.63

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

CCGT120408-FN2 WNN10

Proprietary Coating Designation

WNN10

Length Range (Decimal Inch)

0.5000 - 0.6000

Manufacturer Grade

WNN10

Multi-Use Application

Turning

Inscribed Circle (Inch)

1/2

Relief Angle

7

Hole Diameter (Decimal Inch)

0.2170

Tolerance Code

G

Insert Size Code

432

Insert Style

CCGT

Secondary Workpiece Material Code

P

Chip Breaker

FN2

Insert Shape Code

C

Full Radius

No

Rake Angle

18

Clearance Code

C

Insert Shape

Diamond 80

Corner Radius (Inch)

1/32

Inscribed Circle (Decimal Inch)

0.5000

Wiper Edge

No

Insert Hand

Neutral

Secondary Workpiece Material

Steel

Rake

Positive

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.5080

Lead Angle

80degree

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1875

Insert Length (Decimal Inch)

0.5080

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

12.90

Width (Decimal Inch - 4 Decimals)

0.5080in

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

N

Primary Workpiece Material

Non-Ferrous Metal

Material Grade

N10

Manufacturers Catalog Number

6955648

Corner Radius (Decimal Inch)

0.0315

Coating/Finish

TiAlN

Coating Process

PVD

Series

CCGT-FN2

Insert Material

Carbide

Included Angle

80degree

Standards

ANSI

Number of Cutting Edges

2

Cutting Edge Style

Honed

Product Overview
Turning Insert: CCGT432-FN2 WNN10, Solid Carbide Coated, Neutral, 0.508" Long, 1/2" Inscribed Circle, 0.031" Corner Radius, 80 degree Diamond, Series CCGT
