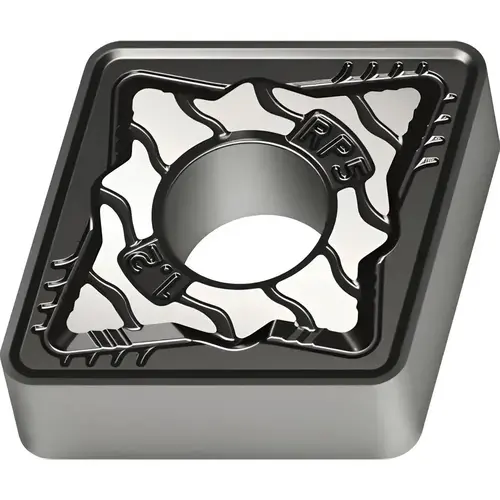

Turning Insert: CNMG543-RP5 WPP05S, Solid Carbide TiCN

Roll over image to zoom in

B Walter 6613528Click To Copy Turning Insert: CNMG543-RP5 WPP05S, Solid Carbide TiCN

Item #: 6613528 by B. Walter & Co.

See reviewsSee reviews
See reviews summary

$41.22

/each
SAVE UP TO 4.12

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CNMG-RP5

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

6613528

Material Grade

P05

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6346in

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6346

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.3000

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.6250

Corner Radius (Inch)

3/64

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

17

Full Radius

No

Insert Shape Code

C

Chip Breaker

RP5

Secondary Workpiece Material Code

K

Insert Style

CNMG

Insert Size Code

543

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2500

Relief Angle

0

Inscribed Circle (Inch)

5/8

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

8.00

Manufacturer Grade

WPP05S

Length Range (Decimal Inch)

0.6000 - 0.6500

Proprietary Coating Designation

WPP05S

Iso Code

CNMG160612-RP5 WPP05S

Product Overview
Turning Insert: CNMG543-RP5 WPP05S, Solid Carbide Coated, Neutral, 0.6346" Long, 5/8" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series Tiger-tec Silver
