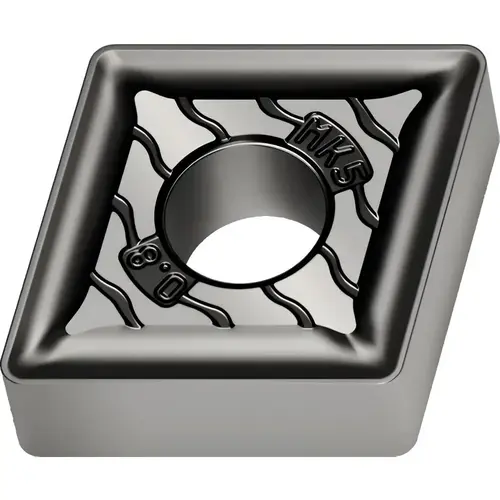

Turning Insert: CNMG432-MK5 WKK10S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6353139-XCP10Click To Copy Turning Insert: CNMG432-MK5 WKK10S, Solid Carbide - pack of 10

Item #: 6353139-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$259.70

/package
SAVE UP TO 25.97

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.1875

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.1969

Maximum Depth of Cut (mm)

5.00

Iso Code

CNMG120408-MK5 WKK10S

Width (Decimal Inch - 4 Decimals)

0.5080in

Secondary Workpiece Material

Hard Material

Relief Angle

0

Cutting Edge Style

Chamfered & Honed

Clearance Code

N

Rake

Negative

Material Grade

H30

Insert Length (Decimal Inch)

0.5080

Insert Holding Method

Clamp

Coating/Finish

TiCN

Rake Angle

14

UNSPSC Code

23242105

Corner Radius (Inch)

1/32

Insert Style

CNMG

Manufacturers Catalog Number

6353139

Insert Hand

Neutral

Proprietary Coating Designation

WKK10S

Manufacturer Grade

WKK10S

Lead Angle

80degree

Inscribed Circle (Inch)

1/2

Secondary Workpiece Material Code

H

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.5000

Coating Process

CVD

Primary Workpiece Material

Cast Iron

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0315

Insert Thickness (Inch)

3/16

Hole Diameter (Decimal Inch)

0.2030

Chip Breaker

MK5

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.5000 - 0.6000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

CVD

Wiper Edge

No

Insert Size Code

432

Included Angle

80degree

Number of Cutting Edges

4

Series

CNMG-MK5

Insert Shape

Diamond 80

Primary Workpiece Material Code

K

Product Overview
Turning Insert: CNMG432-MK5 WKK10S, Solid Carbide TiCN, Al2O3 & TiCN Coated, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series Tiger-tec Silver
