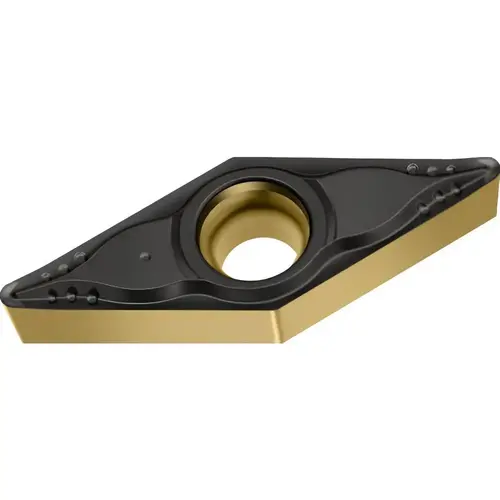

Turning Insert: VBMT332-MP4 WPP20S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6313082Click To Copy Turning Insert: VBMT332-MP4 WPP20S, Solid Carbide TiCN

Item #: 6313082 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$34.85

/each
SAVE UP TO 3.49

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

2

Standards

ANSI

Included Angle

35

Insert Material

Carbide

Series

VBMT-MP4

Side Clearance

Positive

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6313082

Material Grade

P20

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Cutting Edge Style

Honed

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.6540

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

35

Maximum Depth of Cut (Decimal Inch)

0.0780

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

B

Rake Angle

7

Full Radius

No

Insert Shape Code

V

Chip Breaker

MP4

Secondary Workpiece Material Code

K

Insert Style

VBMT

Insert Size Code

332

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

5

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

2.00

Chip Breaker Operation

Roughing

Manufacturer Grade

WPP20S

ISO Size Code

160408

Length Range (Decimal Inch)

0.6500 - 0.7000

ANSI Size Code

332

ISO Insert Code

VBMT160408

Proprietary Coating Designation

WPP20S

Iso Code

VBMT160408-MP4 WPP20S

ANSI Insert Code

VBMT332

Product Overview
Turning Insert: VBMT332-MP4 WPP20S, Solid Carbide Uncoated, Neutral, 0.6538" Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 35 degree Diamond, Series Tiger Tec
