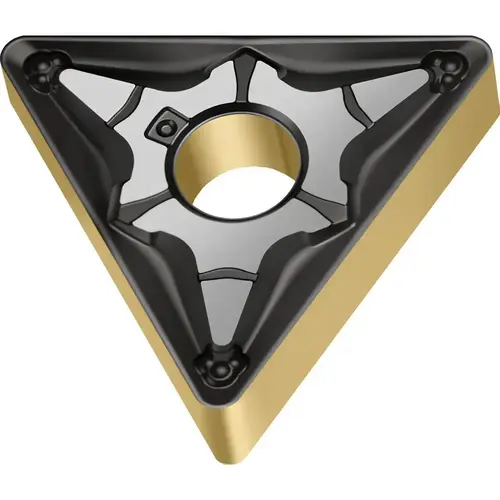

Turning Insert: TNMG333-MP5 WPP20S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6270659Click To Copy Turning Insert: TNMG333-MP5 WPP20S, Solid Carbide TiCN

Item #: 6270659 by B. Walter & Co.

See reviewsSee reviews
See reviews summary

$22.63

/each
SAVE UP TO 2.26

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

6

Standards

ANSI

Included Angle

60degree

Insert Material

Carbide

Series

TNMG-MP5

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

6270659

Material Grade

P20

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.6500in

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6500

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

60degree

Maximum Depth of Cut (Decimal Inch)

0.1570

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

16.51

Corner Radius (Inch)

3/64

Insert Shape

Triangle

Clearance Code

N

Rake Angle

15

Full Radius

No

Insert Shape Code

T

Chip Breaker

MP5

Secondary Workpiece Material Code

K

Insert Style

TNMG

Insert Size Code

333

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

3.99

Manufacturer Grade

WPP20S

Length Range (Decimal Inch)

0.6500 - 0.7000

Proprietary Coating Designation

WPP20S

Iso Code

TNMG160412-MP5 WPP20S

Product Overview
Turning Insert: TNMG333-MP5 WPP20S, Solid Carbide TiCN, Al2O3 & TiN Coated, 16.51 mm Long, 3/8" Inscribed Circle, 3/64" Corner Radius, 60 degree Triangle, Series Tiger-tec
