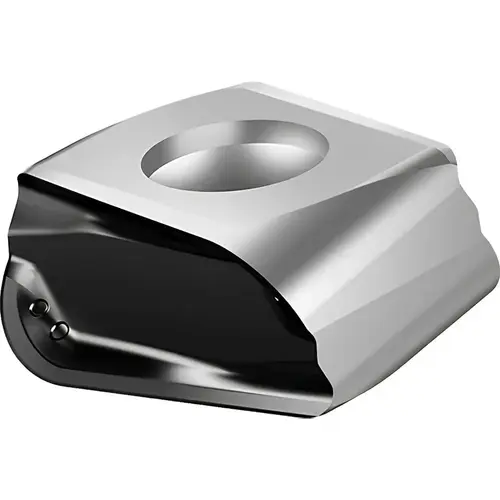

Milling Insert: LNHU130625R-L55T WKP35S, WKP35S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6192843-XCP10Click To Copy Milling Insert: LNHU130625R-L55T WKP35S, WKP35S, Solid Carbide - pack of 10

Item #: 6192843-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$521.73

/package
SAVE UP TO 52.17

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Material Application

Steel

ANSI Code

LNHU130625R-L55T WKP35S

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

LNHU

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0980

Length (Decimal Inch - 4 Decimals)

0.5120

Manufacturers Catalog Number

LNHU130625R-L55T

Material Grade

P35

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2680

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4720

Width (mm - 2 Decimals)

12.00

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.5120

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2680

Insert Shape

Rectangle

Rake Angle

28

Chip Breaker

L55T

Insert Style

LNHU

Insert Size Code

130625

Relief Angle

0.00

Included Angle Degree

90

Manufacturer Grade

WKP35S

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Single or Double Sided Insert

Double

Cutter Series Compatibility

F2010

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.2500 to 0.3500

Iso Code

LNHU130625R-L55T WKP35S

Product Overview
Milling Insert: LNHU130625R-L55T WKP35S, WKP35S, Solid Carbide Coated, 1/4" Thick, 12 mm Wide
