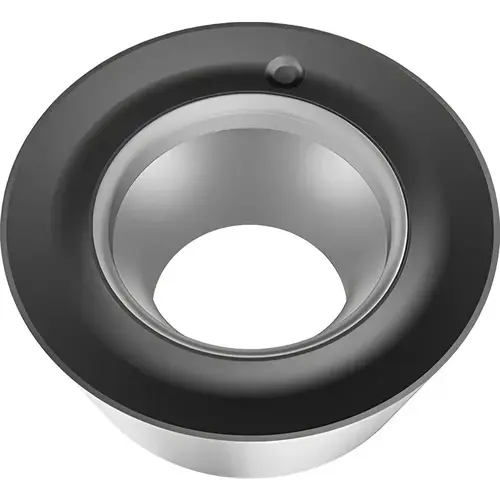

B Walter 6161449Click To Copy Milling Insert: RDMT0803M0-D57 WSM35S, WSM35S, Solid Carbide TiAlN
Item #: 6161449 by B. Walter & Co.
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Material Application
Stainless Steel
ANSI Code
RDMT0803M0-D57 WSM35S
Number of Cutting Edges
4
Standards
ANSI
Insert Material
Solid Carbide
Series
RDMT
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.1575
Length (Decimal Inch - 4 Decimals)
0.3150
Manufacturers Catalog Number
RDMT0803M0-D57
Material Grade
S35
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
Thickness (Decimal Inch - 4 Decimals)
0.1250
Thickness (Inch)
1/8
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3150
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.1575
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.3150
Insert Shape
Round
Rake Angle
10
Chip Breaker
D57
Insert Style
RDMT
Insert Size Code
0803M0
Hole Diameter (Decimal Inch)
0.1339
Relief Angle
15.00
Included Angle Degree
360
Hole Diameter (Mm) ( - 0 Decimals)
0.13
Manufacturer Grade
WSM35S
Inscribed Circle Range (Decimal Inch)
0.3000 to 0.3500
Single or Double Sided Insert
Single
Length Range (Decimal Inch)
0.0000 to 0.3200
Thickness Range (Decimal Inch)
0.1250 to 0.1500
Inscribed Circle (mm)
8.00
Convex Radius (Decimal Inch)
0.1575
Iso Code
RDMT0803M0-D57 WSM35S
Product Overview
Milling Insert: RDMT0803M0-D57 WSM35S, WSM35S, Solid Carbide Coated, 0.1252" Thick
