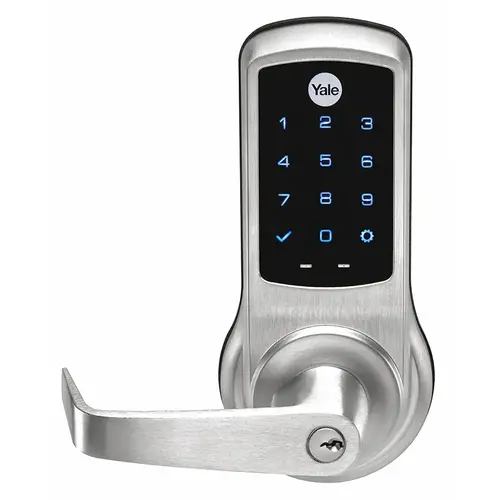

Nextouch Cylindrical Lockset, Satin Chromium Plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Yale Commercial B-AU-NTB620-NR 626 Nextouch Cylindrical Lockset, Satin Chromium Plated

Item #: B-AU-NTB620-NR 626 by Yale

See reviewsSee reviews

$576.11

/each
SAVE UP TO 57.61

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • ANSI / BHMA Grade 1
  • Certified ANSI/BHMA A156.2, Series 4000 Grade 1.
  • Ergonomic, Easy to Use Design
  • Functions are UL/cUL Fire Listed for use on fire doors having a rating up to and including 3 hours.
  • Works with Cloud Based Management Software
  • 2-3/4" (70mm) standard backset, 2-3/8" backset optional.
  • Continuously Updated Audit Trail
  • nexTouch™ uses a cylindrical lock with lever door preparation with the addition of one 1" hole.
  • Standard door thickness is 1-3/4" (44mm). For use on 1-3/8" thick doors, a special thin door kit must be used.
  • Weather Resistant Gasket Seal
  • The nexTouch features Yale's Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.
  • Powered by 4 AA alkaline batteries with optional hardwire inputfor 9VDC external power.
  • Choice of capacitive touchscreen or tactile pushbutton keypad.
  • Ergonomic, easy-to-use design.
  • Keyless entry and management.
  • PIN code access.
  • Modular technology.
  • Works with cloud-based management software.
  • 9V battery power backup feature.
  • Hardwire power capable.

Finish

Satin Chrome

Function

Touchscreen Lock

Series

NexTouch Series

Design

Augusta

Strike

ANSI Strike

Backset

2-3/4 Inch

Color

Satin Chromium Plated

Hand

Not Handed

Grade

ANSI/BHMA Grade 1

Special Marks

Small format interchangeable core, Complies with ADA accessibility guidelines

Strike Width

1-1/4 In.

Latch Backset Dim

2-3/4 In.

Operating Voltage

4 AA Batteries

Cylinder Type

SFIC Less Core-Small Format Prep

Application

Complex Applications Including Multi Family and Small Business

Package Qty

1

Door Thickness

1-3/8" to 1-3/4"

Color Code

626/US26D

Strike Height

4-7/8 In.

Lever/Knob Design

AU - Augusta

Power

Battery Pack

Product Type

Electronic Cylindrical Lock

Strike Number

497

Minimum Stile Width

3-1/2 Inch

Manufacturer Parent

Assa Abloy

Latch Number

694

Locking Device

Cylindrical Lock

Lever Material

Cast Zinc

Finish Description

Satin Chrome

Latch Throw

1/2 Inch

Sub-Series

B-AU-NTB620-NR-626-LC

Lever Style Family

Straight Return Lever

Trim Style

Augusta (AU)

ADA Compliant

YES

Front Size

2-1/4" x 1-1/8"

Operating Temperature

-40 to 140°F

Lever Length-Inches

5-5/16 Inch

Handle Type

Lever

Programming Method

Keypad

Function Family

Keypad Lock

Standards

ANSI/BHMA A156.3; UL/cUL Fire Listed for 3 Hours; Complies FCC Rules; ISO 9001 Quality System

Rose Diameter

3-3/4 Inch

Lever Style

AU-Augusta

Lever Projection

3-5/16 Inch

Strike Type

ANSI

Warranty

3 year

Finish Family

Satin Chrome
