Cylindrical Lock Dark Oxidized Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

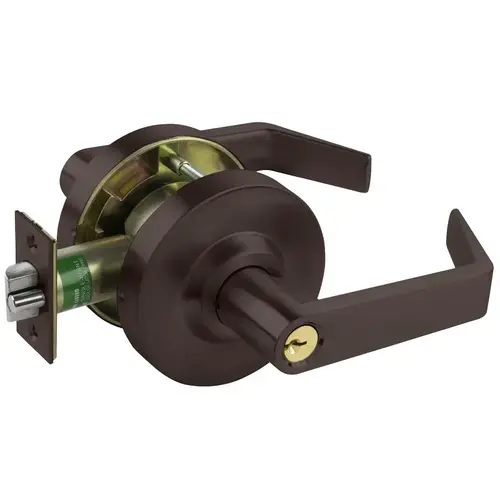

Arrow MLX87-SR-613E Cylindrical Lock Dark Oxidized Bronze

Item #: MLX87-SR-613E by Arrow

See reviewsSee reviews
HURRY! Low in stock

$122.17

/each
SAVE UP TO 12.22

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
  • Backset – 2-3/4" (69.85mm)
  • Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
  • Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
  • Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
  • Freewheeling Lever
  • Warranty – Ten Year Warranty
  • Handing – Non-handed
  • Packaging – 6 per case
  • Strike – 4-7/8" ANSI (123.83mm)
  • Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
  • Keys – 2 brass keys

Package Width

6.875

Package Volume

199.8046875

Package Length

7.5

Package Height

3.875

BAA Qualified

No

Origin

South Korea

Fire Rated

3 Hours {A}

Color Code

613E/US10BE

Color

Dark Oxidized Bronze
