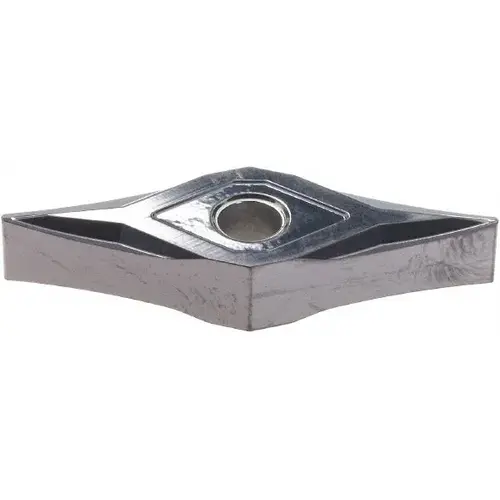

Turning Insert: VNGP160404FN-EX AM5025, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Arno 76540Click To Copy Turning Insert: VNGP160404FN-EX AM5025, Solid Carbide

Item #: 76540 by Arno

See reviewsSee reviews
See reviews summary
In Stock

$42.43

/each
SAVE UP TO 4.24

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 27 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

4

Standards

ANSI

Included Angle

35degree

Insert Material

Carbide

Series

VNGP

Coating Process

PVD

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

76540

Material Grade

M15

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3748in

Width (Inch)

3/8in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.3070

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1378

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3748

Corner Radius (Inch)

1/64

Insert Shape

Diamond 35

Clearance Code

N

Full Radius

No

Insert Shape Code

V

Chip Breaker

EX

Secondary Workpiece Material Code

P

Insert Style

VNGP

Insert Size Code

331

Tolerance Code

G

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Manufacturer Grade

AM5025

Iso Code

VNGP 160404FN-EX

Product Overview
Turning Insert: VNGP160404FN-EX AM5025, Solid Carbide 35 degree Diamond
