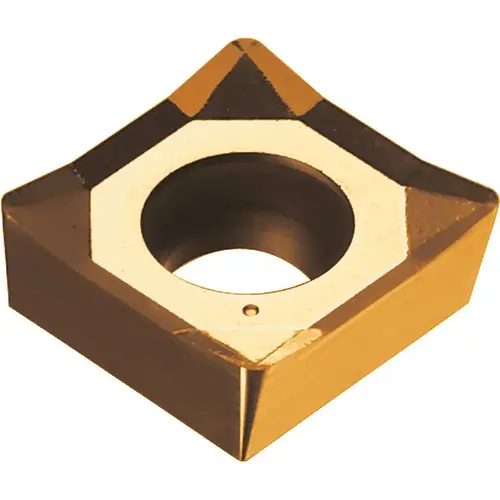

Turning Insert: SCGT32.51FN-ALU AK10, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Arno 22686Click To Copy Turning Insert: SCGT32.51FN-ALU AK10, Solid Carbide Bright/Uncoated

Item #: 22686 by Arno

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$23.10

/each
SAVE UP TO 2.31

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

4

Standards

ANSI

Insert Thickness

3.97

Included Angle

90degree

Insert Material

Carbide

Series

SCGT

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

22686

Material Grade

N05

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3748in

Width (Inch)

3/8in

Width (mm - 2 Decimals)

9.53

Coating Classification

Uncoated

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3748

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.1575

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3748

Insert Length (mm)

9.53

Corner Radius (Inch)

1/64

Insert Shape

Square

Clearance Code

C

Full Radius

No

Insert Shape Code

S

Chip Breaker

ALU

Secondary Workpiece Material Code

K

Insert Style

SCGT

Insert Size Code

32.51

Tolerance Code

G

Hole Diameter (Decimal Inch)

4.4000

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Insert Length (Inch)

3/8

Maximum Depth of Cut (mm)

4.00

Manufacturer Grade

AK10

Inscribed Circle (mm)

9.53

Corner Radius (mm)

0.40

Proprietary Coating Designation

Uncoated

Iso Code

SCGT 09T304FN-ALU

Product Overview
Turning Insert: SCGT32.51FN-ALU AK10, Solid Carbide Uncoated, Neutral, 9.53 mm Long, 9.53 mm Inscribed Circle, 0.4 mm Corner Radius, 90 degree Square
