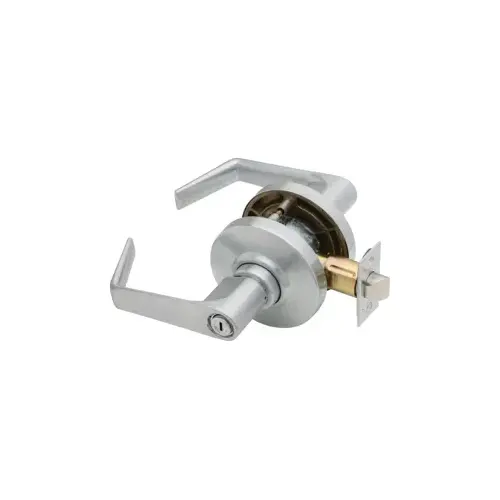

Schlage Commercial AL40S SAT 626 AL40S Saturn Privacy Lock, Satin Chrome

Item #: AL40S SAT 626 by Schlage Commercial

UPC #: 043156959471

11 reviews
In Stock

$210.00

/each
SAVE UP TO 21.00

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Handing: Non-handed.
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Grade

ANSI/BHMA Grade 2

Thickness

1-3/8 In. - 1-7/8 In.

Hand

Not Handed

Color

Satin Chrome

Color Code

626/US26D

Case Length

16.375"

Function

40-Privacy

Origin

Mexico

BAA Qualified

Yes

Package Height

4.75"

Package Length

9.5"

Package Volume

372.28125

Package Width

8.25"

ANSI Function

F76 - Privacy

Case Height

10"

Case Volume

2394.84375

Case Width

14.625"

Latch Backset Dim

2-3/4"

Latch Number

11-116

Latch Type

Spring Latch (Unguarded)

Lever/Knob Design

SAT - Saturn

Lock Face Size

2-1/4" x 1-1/8"

Package Qty

1

Rose/Escutcheon Design

3-7/16 In. Diameter

Screws

Combination

Strike Height

4-7/8"

Strike Number

10-025

Strike Type

ASA

Strike Width

1-1/4"

Base Material

Brass or Bronze

Finish

Satin Chrome

Backset

2-3/4", 1-1/8" x 2-1/4", Square Corner

Strike

ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner

Finish Description

Satin Chrome

Lever Style

SAT-Saturn

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Series

AL Series

Projection

2.5000

Lever Length

4.2500

Door Thickness

1 3/8" - 1 7/8"

ADA Approved

True

Door Range

1 3/8 to 1 7/8

Product Material

Zinc; wrought brass or bronze

Strike Name

ANSI 1-1/4 x 4-7/8

Bore Size

2.1250

Box Length

9.5000

Box Width

8.0000

Box Height

4.7500

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Handing

Field Reversible

Cylinder Included

No

Cylinder Type

None

Strike Size

4-7/8" x 1-1/4"

Alternate Part Number-1

118305

Latch Bolt Type

Deadlatch

Knob/Lever Design

Saturn

Rose/Escutcheon Size

3-7/16"

Latch Bolt Faceplate Size

2-1/4" x 1-1/8"

Door Bore Size

2-1/8"

Lock Category

Cylindrical Lock

Door Thickness Min

1-3/8"

Latch Bolt Face Type

Square Corner

Latch Bolt Throw

1/2"

Rose/Escutcheon Style

Rose

Door Thickness Max

1-7/8"

Knob/Lever Style

Lever
