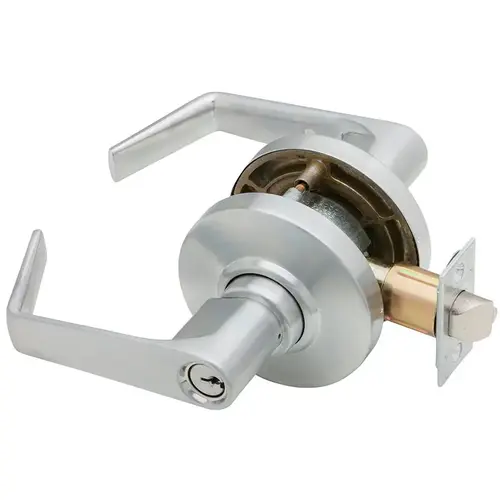

AL53PD Saturn Entrance Lock, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Commercial AL53PD SAT 626 AL53PD Saturn Entrance Lock, Satin Chrome

Item #: AL53PD SAT 626 by Schlage Commercial

UPC #: 043156959624

See reviewsSee reviews

$268.62

/each
SAVE UP TO 26.86

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Entry - Turn/Push Button Locks Outside Lever Until Unlocked with Key or Rotating Inside Turn
  • Handing: Non-handed.
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • ANSI/BHMA Certified A156.2
  • 1-3/8" to 1-7/8" Door Range
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • UL Listed for 3 Hour Fire Door
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Commercial Grade 2
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Series

AL Series

Design

Saturn

Strike

ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner

Backset

2-3/4", 1-1/8" x 2-1/4", Square Corner

Finish

Satin Chrome

Function

53-Entrance

Thickness

1-3/8 In. - 1-7/8 In.

Strike Number

10-025

Package Volume

372.28125

Latch Number

11-096

Case Width

14.625"

Latch Type

Dead Latch (Guarded)

ANSI Function

F109 - Entry/Office

Hand

Not Handed

Grade

ANSI/BHMA Grade 2

Special Marks

Conventional cylinder

Key(s)

Cut

Strike Width

1-1/4"

Latch Backset Dim

2-3/4"

Cylinder Type

P-6 Pin Conventional (Keyed 5)

Lock Face Size

2-1/4" x 1-1/8"

Case Length

16.375"

Package Qty

1

Package Height

4.75"

Screws

Combination

Keying

Keyed Different

Case Height

10"

Package Width

8.25"

Case Volume

2394.84375

Color Code

626/US26D

Strike Type

ASA

Origin

Mexico

BAA Qualified

Yes

Rose/Escutcheon Design

3-7/16 In. Diameter

Base Material

Brass or Bronze

Keyway

Schlage C

Strike Height

4-7/8"

Lever/Knob Design

SAT - Saturn

Package Length

9.5"

Finish Description

Satin Chrome

Lever Style

SAT-Saturn

Keyblank Grouping

SCHL-C-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Projection

2.5000

Lever Length

4.2500

Door Thickness

1 3/8" - 1 7/8"

Bore Size

2.1250

ADA Approved

True

Door Range

1 3/8 to 1 7/8

Keying Charges

CCAM

Product Material

Zinc; wrought brass or bronze

Strike Name

ANSI 1-1/4 x 4-7/8

Box Length

9.5000

Box Width

8.0000

Box Height

4.7500

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual
