8000 Series Surface Door Closer, Aluminum Painted

Roll over image to zoom in

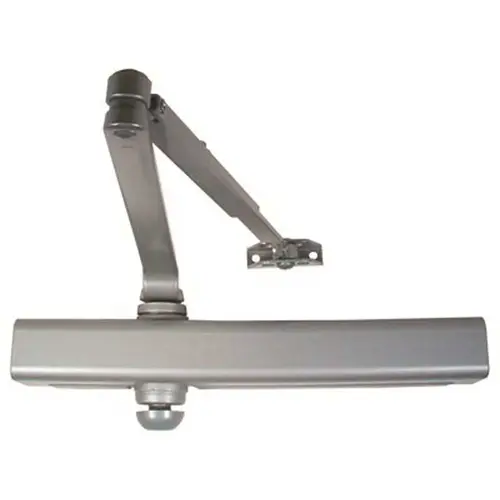

Norton 8301 689 8000 Series Surface Door Closer, Aluminum Painted

Item #: 8301 689 by Norton

UPC #: 049306092463

See reviews See reviews
In Stock

$229.74

/each
SAVE UP TO 22.97

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
  • Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
  • Closers shall be non-handed to permit installation on doors of either hand.
  • Closer fluid shall contain lubricity and anti-oxidation agents.
  • Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
  • Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
  • Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
  • Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
  • [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
  • Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
  • **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
  • Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].

Finish

Aluminum Painted

Function

Tri-Packed Non-Hold Open Arm

Series

8301 Series

Grade

ANSI/BHMA Grade 1

Application

Offices; Banks; Retail Malls; Hotels; Health Care; Clinics

Cover

Plastic

Type

Surface

Hand

Non-Handed

Color

Aluminum Painted

Color Code

689/US28

Case Length

15.75"

Mounting Style

Tri Mount

Arm Type

Regular Arm

Fire Rated

3 Hours {A}

Origin

USA

Closer Size

Adj. 1 to 6

BAA Qualified

Yes

Package Height

3.5"

Package Length

15.25"

Package Volume

333.59375

Package Width

6.25"

Back Check

Adjustable

Case Height

7.75"

Case Volume

1556.296875

Case Width

12.75"

Cold Weather Fluid

Yes

Mounting Location

Push or Pull Side

Package Qty

1

Special Marks

Fire rated 3 Hours {A}

Base Material

VARIES

Spring Size

1-6

Mount

Push or Pull Side

Finish Description

Aluminum Painted

Product Type

Door Closer/Holder/Stop

Warranty

30 Year Limited Warranty

Pack Size

1

UNSPSC

30171514

Product Height

2-7/8 Inch

Product Length

13 Inch

Product Width

2-1/8 Inch

ADA Compliant

YES

Finish Family

Aluminum

Product Material

Cast Aluminum

Closer Cover

Slim Plastic Cover

Standards

Grade 1 - ANSI/BHMA A156.4; UL listed; UL10c

Closer Arm Extension

2-1/8 Inch

Closer Arm Type

Regular Arm

Closer Fluid Temperature Range

Extremely High to as Low as -40° F

Closer Fluid

NorGlide (R) Closer Fluid

Closer Piston Diameter

1-1/4 Inch

Closer Pinion Diameter

5/8 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

3/4" x 12"

Templating

Full Size Template

Fastener Type

Self Drilling Screws

Features

Exceeds 25 Million Cycles; Rack and Pinion Design; Staked Valves

Mounting Type

Push or Pull Side

Handing

Non-Handed

Door Thickness

1-3/4 inch

Door Size

32" to 54" (Interior); 30" to 48" (Exterior)

Maximum Door Opening

180°

Manufacturer Parent

Assa Abloy

Closer Hold-Open

false

Sub-Series

DC_Surface Mounted Closers_norton_36

Item Weight

10 lbs

8000 SeriesArchitectural Door Closer

Multi-sized surface closer offering a complete range of arms and a sleek, minimal design suited for moderate- to hightraffic, architectural openings.

Features:
  • Exceeds 25 million cycles
  • Adjustable spring sizes 1 through 6
  • Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting)
  • Non-handed
  • Staked valves
  • Cast aluminum closer body
  • Rack and pinion design
  • 1-1/4" (32mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • 2-1/8" (54mm) projection (standard covers)
  • All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
  • Full size template
  • Standard, separate and independent, latch, sweep and back check intensity valves
  • Application specific arms: Regular (S), Top Jamb (JS) and Parallel (P)
  • Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™, Unitrol®
  • Slide Tracks: push or pull side mounting
  • 25-year limited warranty
Optional Features:
  • Lead lined metal cover - suffix MLL
  • Metal, architectural plastic or architectural metal covers (8501 only)
  • Delayed action
Cerifications:
  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire rated doors
  • UL10C listed for positive pressure fire test
  • 8301 and 8501 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A)and ANSI standard A117.1
  • This product is manufactured in an ISO 9001, ISO 14001 facility
Caution:
  • Door Closers for Low Opening Force Applications:
  • Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
