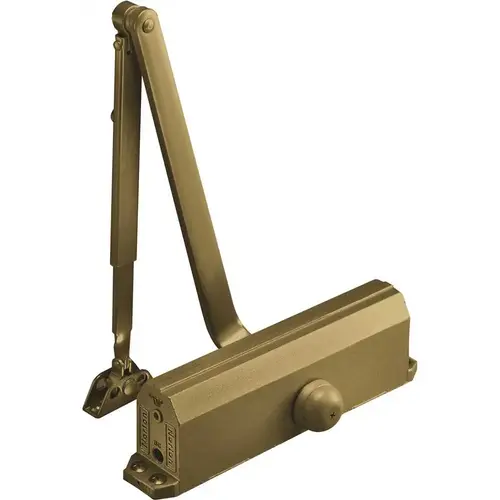

1600 Series Surface Door Closer, Satin Brass Painted

Roll over image to zoom in

Norton 1601 696 1600 Series Surface Door Closer, Satin Brass Painted

Item #: 1601 696 by Norton

UPC #: 840067681350

See reviews See reviews
In Stock

$159.70

/each
SAVE UP TO 15.97

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Exceeds 25 Million Cycles Based on Internal Cycle Testing
  • Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
  • Closers shall be surface mounted and shall project no more that 2-7/8" from the surface of the door.
  • Closers shall be non-handed to permit installation on doors of either hand.
  • Closer fluid shall contain lubricity and anti-oxidation agents.
  • Non Handed for Easy Installation
  • Rack and Pinion Design
  • Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
  • Closers shall have multi-size spring power adjustment to permit setting of spring from (1 through 4) or (3 through 6).
  • Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep and latch speed.
  • Corrosion Resistant Model
  • Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve.
  • [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
  • Molded Plastic Cover
  • [Closer body shall be enclosed in/concealed with a full molded cover.]
  • [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, zinc alloy or stainless steel material and all stainless steel fasteners.]
  • Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/- 7-1/2% ) power adjustment. ** [1601] [1601BF] [1601SS].

Finish

Satin Brass Painted

Function

Tri-Packed Non-Hold Open Arm

Grade

ANSI/BHMA Grade 1

Application

Aluminum Storefronts; Office Doors; Utility Closets; Storage Rooms

Type

Surface

Hand

Non-Handed

Color

Satin Brass Painted

Color Code

696/US4

Case Length

12.75"

Mounting Style

Tri Mount

Arm Type

Regular Arm

Fire Rated

3 Hours {A}

Origin

USA

Closer Size

Adj. 1 to 6

BAA Qualified

Yes

Package Height

3.5"

Package Length

12.5"

Package Volume

218.75

Package Width

5"

Back Check

Adjustable

Case Height

10.5"

Case Volume

1539.5625

Case Width

11.5"

Cold Weather Fluid

Yes

Mounting Location

Push or Pull Side

Package Qty

1

Special Marks

Fire rated 3 Hours {A}

Base Material

VARIES

Spring Size

1-6

Mount

Push or Pull Side

Finish Description

Satin Brass Painted

Product Type

Door Closer/Holder/Stop

UNSPSC

31162800

Product Height

2-5/8 Inch

Product Length

9-3/4 Inch

Product Width

2-7/8 Inch

ADA Compliant

YES

Finish Family

Brass

Product Material

Cast Aluminum

Closer Cover

Without Cover

Standards

Grade 1 - ANSI BHMA

Closer Arm Type

Regular Arm

Closer Clearance

1-1/2 Inch

Closer Fluid Temperature Range

Extremely High to as Low as -40°F

Closer Fluid

NorGlide

Closer Piston Diameter

1-3/8 Inch

Closer Pinion Diameter

5/8 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

3/4" x 9-1/16"

Fastener Type

Self Drilling Screws

Features

Independent Latch; Sweep and Backcheck Intensity Valves to Ensure Positive Control; Quick Adjust Slide Arm for Easy Installation and Adjustment

Mounting Type

Push or Pull Side

Handing

Non-Handed

Warranty

30 Year Limited Warranty

Door Thickness

1-3/4 inch

Door Size

42" (Interior); 36" (Exterior)

Maximum Door Opening

180°

Minimum Hold-Open

90°

Manufacturer Parent

Assa Abloy

Closer Hold-Open

false

Maximum Hold-Open

180°

Sub-Series

DC_Surface Mounted Closers_norton_1

1600 SeriesAluminum Storefront Door Closers

The 1600 Series door closers offer proven quality, performance and reliability unmatched by the competition. A staple in the industry, these ANSI/BHMA Grade 1 closers are designed for exterior or interior doors. A full complement of regular and heavy-duty arms, brackets and options make the 1600 Series closers ideal for virtually any medium traffic, commercial application.

Features:
  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum closer body
  • 2-7/8" (73mm) projection
  • 1-3/8" (35mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • Tri-Style® packaging
  • (regular arm, top jamb and parallel arm mounting)
  • All standard arm applications allow doors to swing 180°, conditions permitting
  • Staked valves
  • Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • 25-year limited warranty
Opional Features:
  • Molded plastic cover - specify suffix P
  • Corrosion-resistant model (non-hold open only) - specify 1601SS (not tri-packed)
Certifications:
  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire rated doors
  • UL10C listed for positive pressure fire test
  • Manufactured in an ISO 9001 and ISO 14001 certified facility
  • 1601 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A) and ANSI standard A117.1
Caution:
  • Door Closers for Low Opening Force Applications:
  • Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
Explanation of Features: Aluminum Alloy Housing:
  • Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interaction with steel components and operating conditions.:
Rack & Pinion Operation:
  • Provides a smooth constant control of the door through its full opening and closing cycle. 180° door swing can be achieved when door, frame, hardware and arm function do not limit door swing.:
Non-Handed:
  • With few exceptions, all series 1600BC and series 1601 door closers are nonhanded and can be installed on either right- or left- hand swing doors.
  • Pinion shaft extends vertically through the closer body in both directions.
  • Some options (such as Parallel Rigid hold open arms) will require that the hand of the closer be specified.
Tri-Style®:
  • 1600BC/1601 closers come with screws, brackets & soffit plate to allow for regular, top jamb, & parallel arm installations.:
Sweep Speed Control Valve:
  • Allows adjustment of door speed from the door's full open position down to approximately 10° from the closed position.
Latch Speed Control Value:
  • Allows adjustment of door speed from approximately 10° down to the door’s fully closed position.
Adjustable Backcheck Cushion Valve:
  • Provides control of the door in the opening cycle, beginning at approximately 75° of door opening.
  • It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.
Warranty:
  • These closers carry a limited 25-year warranty against defects and a limited lifetime warranty on the aluminum housing.
Closer Fluid:
  • NorGlide® door closer fluid is a specially formulated hydraulic fluid that contains lubricity and anti oxidation agents that provide optimum performance and efficiency.
  • This fluid complements the interaction of the door closer's aluminum housing with its steel and zinc components, while maintaining stable viscosity to allow the door closer to perform in temperatures ranging from extremely high to as low as -40° F.
Door Closer Power Options: Sized Door Closer: 1600BC
  • Available in power sizes 3 or 4. Outlined in ANSI specification A156.4. Spring power is not adjustable.
Multi-Sized Door Closer: 1601
  • Adjustable through the power range of sizes 1 through 6 to comply with the opening force requirements as outlined in the Americans with Disabilities Act (A.D.A.) and ANSI A117.1 for interior doors.
  • Outlined in ANSI specification A156.4.
